Product Summary

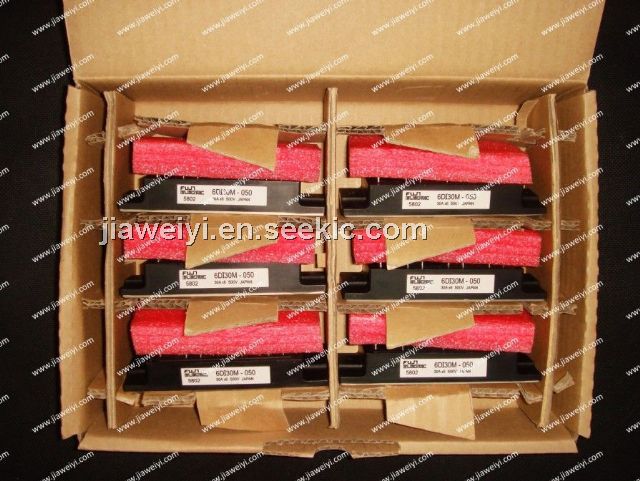

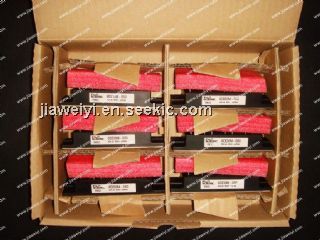

The 6DI30M-050 is a Power Transistor Module. The applications of the 6DI30M-050 are General Purpose Inverter, Uninterruptible Power Supply, Servo & Spindle Drive for NC Machine Tools, Robotics (Servo Drive for Robots), Switching Power Supplies for welding Machines.
Parametrics
6DI30M-050 absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VCEO(SUS): 450V; (4)VEBO: 10V; (5)IC: 30A; (6)ICP(1ms): 60A; (7)PC: 200W(one Tansistor), 1200W(six Tansistors); (8)Junction Temperature(Tj): +150℃; (9)Storage Temperature (Tstg): -40℃ to +125℃; (10)Weight: 235g; (11)Visol(AC. 1min): 2500V.
Features
6DI30M-050 features: (1)High DC Current Grain; (2)High Speed Switching.
Diagrams
