Product Summary
The 6DI75A-050 is a Power Transistor Module. The applications of the 6DI75A-050 are AC Motor Controls and Air Conditiners.
Parametrics
6DI75A-050 absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VCEO(SUS): 450V; (4)VEBO: 7V; (5)IC: 75A; (6)ICP(1ms): 150A; (7)PC: 350W(one Tansistor); (8)Junction Temperature(Tj): +150℃; (9)Storage Temperature (Tstg): -40℃ to +125℃; (10)Weight: 450g; (11)Visol(AC. 1min): 2500V.
Features
6DI75A-050 features: (1)Inculding Free Wheeling Diode; (2) High DC Current Grain; (3)Insulated Type.

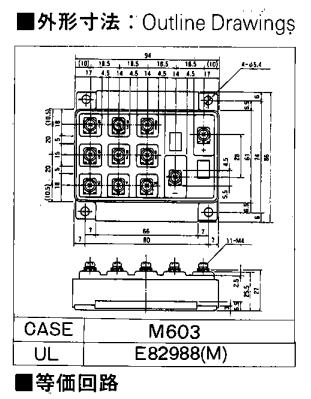

Diagrams
