Product Summary

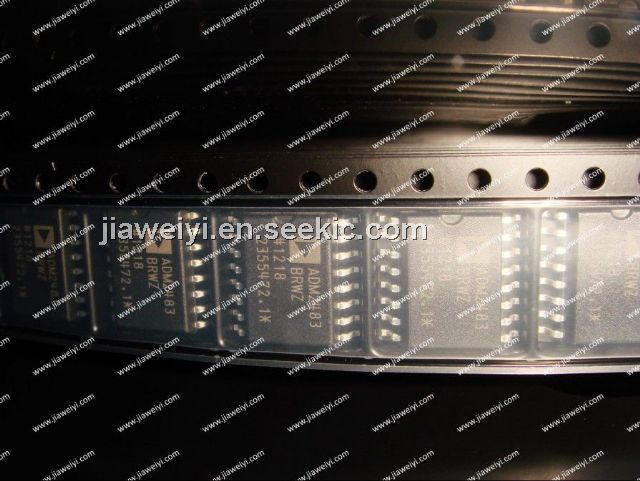

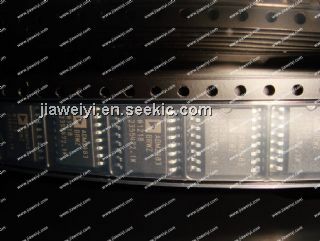

The ADM2483BRWZ is a differential bus transceiver. It is an integrated, galvanically isolated component designed for bidirectional data communication on balanced, multipoint bus transmission lines. It complies with ANSI TIA/EIA RS-485-A and ISO 8482:1987(E). Using Analog Devices’ iCoupler technology, the ADM2483BRWZ combines a 3-channel isolator, a 3-state differential line driver, and a differential input receiver into a single package. The applications of the ADM2483BRWZ include Low power RS-485/RS-422 networks, Isolated interfaces, Building control networks and Multipoint data transmission systems.
Parametrics
ADM2483BRWZ absolute maximum ratings: (1) VDD1: -0.5 V to +7 V; (2) VDD2: -0.5 V to +6 V; (3) Digital Input Voltage (DE, RE, T × D): -0.5 V to VDD1 +0.5 V; (4) Digital Output Voltage: R × D:-0.5 V to VDD1 +0.5 V; (5) Driver Output/Receiver Input Voltage: -9 V to +14 V; (6) Operating Temperature Range: -40℃ to +85℃; (7) Storage Temperature Range: -55℃ to +150℃; (8) Average Output Current per Pin: -35 mA to +35 mA; (9) θJA Thermal Impedance: 73℃/W; (10) Lead Temperature: Soldering (10 s): 260℃, Vapor Phase (60 s): 215℃, Infrared (15 s): 220℃.
Features
ADM2483BRWZ features: (1) RS-485 transceiver with electrical data isolation; (2) Complies with ANSI TIA/EIA RS-485-A-1998 and ISO 8482: 1987(E); (3) 500 kbps data rate; (4) Slew rate–limited driver outputs; (5) Low power operation: 2.5 mA max; (6) Suitable for 5 V or 3 V operation (VDD1); (7) High common-mode transient immunity: >25 kV/μs; (8) True fail-safe receiver inputs; (9) Glitch-free power-up/-down protection; (10) 256 nodes on bus; (11) Thermal shutdown protection; (12) Operating temperature range: -40 to +85℃.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADM2483BRWZ |
|
IC TXRX RS485 ISOLATED 16SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
ADM2483BRWZ-REEL |
|
IC TXRX RS-485 ISOLATED 16SOIC |
Data Sheet |
|
|
||||||||||||||||||
