Product Summary

The AT45DB161D-TU is a 2.5-volt or 2.7-volt, serial-interface sequential access Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. The AT45DB161D-TU supports RapidS serial interface for applications requiring very high speed operations. RapidS serial interface is SPI compatible for frequencies up to 66 MHz. Its 17,301,504 bits of memory are organized as 4,096 pages of 512 bytes or 528 bytes each.

Parametrics

AT45DB161D-TU absolute maximum ratings: (1)Temperature under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins)with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V.

Features

AT45DB161D-TU features: (1)Single 2.5V - 3.6V or 2.7V - 3.6V Supply; (2)RapidS Serial Interface: 66 MHz Maximum Clock Frequency: SPI Compatible Modes 0 and 3; (3)JEDEC Standard Manufacturer and Device ID Read; (4)100,000 Program/Erase Cycles Per Page Minimum; (5)Data Retention ?20 Years; (6)Industrial Temperature Range; (7)Green (Pb/Halide-free/RoHS Compliant) Packaging Options.

Diagrams

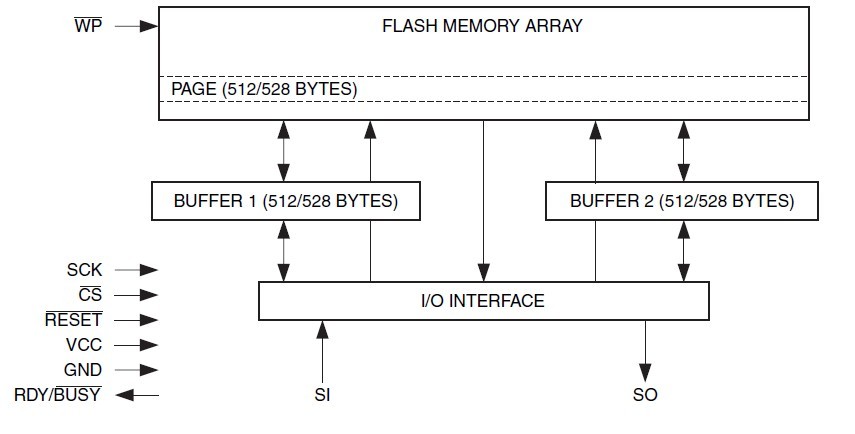

AT45DB161D-TU diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT45DB161D-TU
AT45DB161D-TU

Atmel

Flash 16M 28 I/O Pins SPI 528B 2.5V 2.7V

Data Sheet

Negotiable
AT45DB161D-TU-2.5
AT45DB161D-TU-2.5

Atmel

Flash 16MB SERIAL - IND TEMP

Data Sheet

0-1: $1.06
1-10: $1.03
10-25: $0.98
25-100: $0.92
