Product Summary
The BXB75-48S05FLT is a high power density DC/DC converter packaged in the industry standard footprint (2.40 x 2.28 x 0.50 inches) to give designers optimum choices when specifying for both new and replacement designs. Suitable for a wide range of applications in nearly any industry, the BXB75-48S05FLT was particularly designed with communication and distributed power applications in mind. Using Bellcore 332, the MTBF is greater than 1,400,000 hours. Aluminum baseplate technology with four threaded M3 inserts makes heatsink attachment and optimum thermal management easy. The BXB75-48S05FLT is approved to IEC950 by UL, CSA and VDE.
Parametrics
BXB75-48S05FLT absolute maximum ratings: (1)Output power (max.): 75W; (2)Input voltage: 36-75VDC; (3)OVP: 6.5VDC; (4)Output voltage: 5V; (5)Output current(min.): 0A; (6)Output current(max.): 15A; (7)EFFICIENCY (TYP.): 83%.
Features
BXB75-48S05FLT features: (1)Industry standard footprint; (2)MTBF >1.4 million hours (Bellcore 332); (3)Input voltage to ETS300-132-2; (4)Adjustable output voltage; (5)No minimum load required; (6)Separate case ground pin; (7)2:1 input range for battery powered applications; (8)Undervoltage lockout (UVLO); (9)UL, VDE and CSA safety approvals.

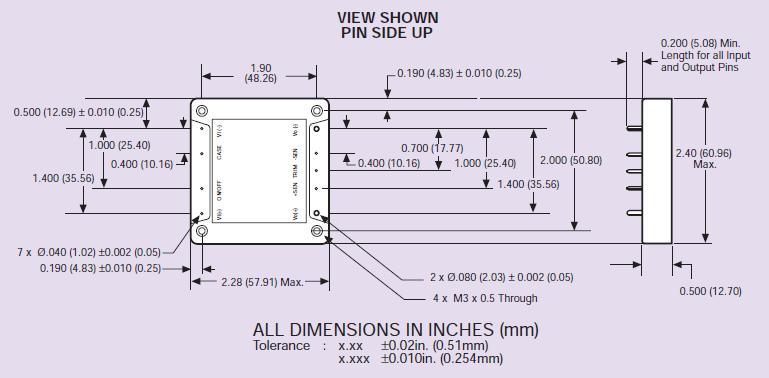

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BXB75-48S05FLT |
Emerson / Astec Power |
DC/DC Converters 75W 5V 15A |
Data Sheet |
Negotiable |
|
||||||||||
|
BXB75-48S05FLTJ |
Emerson / Astec Power |
DC/DC Converters 75W 5V 15A |
Data Sheet |
|
|
||||||||||
