Product Summary

The B45197A1687K509 is a Tantalum Chip Capacitor. The applications of it include: Telecommunications, Data processing, Measuring and control engineering, Automotive electronics, Medical engineering, DC/DC converters. The B45197A1687K509 is suitable for reflow soldering (IR and vapor phase, in compliance with JEDEC J-STD-020 C) and wave soldering.

Parametrics

B45197A1687K509 general specifications: (1)Rated voltage (up to 85 ℃):4VDC to 50VDC; (2)Rated capacitance (20 ℃, 120 Hz):0.10μF to 100μF; (3)Capacitance tolerance:±20%, ±10%; (4)Maximum impedance (20 ℃, 100 kHz):0.8Ω to 28Ω; (5)Operating temperature range:-55℃ to +125 ℃; (6)Failure rate(1 fit = 1*10-9 failures/h): CR*VR ≤ 330 μF* V:≤3 fit, CR*VR > 330 μF * V: ≤10fit; (7)Service life:>500000 h; (8)Leakage current (VR, 5 min, 20 ℃):10 nA/μC; (9)Detail specification:CECC 30801-801; (10)Climatic category(to IEC 60068-1)(-55 ℃/+125 ℃/56 days damp heat test):55/125/56.

Features

B45197A1687K509 features: (1)Wide variety of Low ESR values; (2)High ripple current capability; (3)High volumetric efficiency; (4)Excellent solderability; (5)Stable temperature and frequency characteristics; (6)Low leakage current, low dissipation factor; (7)Low self-inductance; (8)High resistance to shock and vibration; (9)Suitable for use without series resistor (special operating conditions recommended); (10)Lead-free and material content compatible with RoHS; (11)Some partnumbers are only available in M (±20%) tolerance; these types have a maximum capacitance drift at +125℃ of +20%.

Diagrams

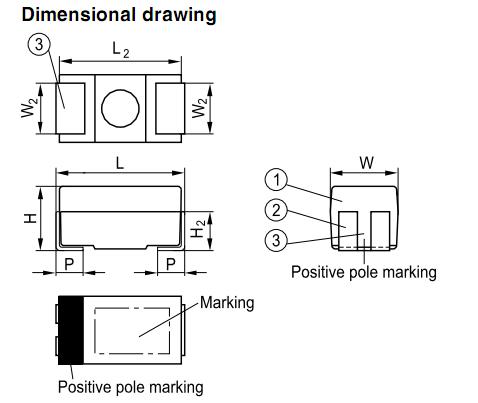

B45197A1687K509 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
B45197A1687K509
B45197A1687K509

Kemet

CAP TANT 680UF 6.3V 10%LOESR SMD

Data Sheet

1-400: $0.41
400-800: $0.40
800-2000: $0.38
2000-4000: $0.36
4000-8000: $0.34
