Product Summary
The EE80C196KB16 is a 16-bit microcontroller. It is a high performance member of the MCS 96 microcontroller family. The EE80C196KB16 has the same peripheral set as the 8096BH and has a true superset of the 8096BH instructions. Intel CHMOS process provides a high performance processor along with low power consumption. To further reduce power requirements, the processor can be placed into Idle or Powerdown Mode. Events of EE80C196KB16 can be based on the timer or up/down counter. Also provided on-chip are an A/D converter, serial port, watchdog timer and a pulse-width-modulated output signal.
Parametrics
EE80C196KB16 absolute maximum ratings: (1)Ambient Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage On Any Pin to VSS: -0.5V to +7.0V; (4)Power Dissipation(1): 1.5W.
Features
EE80C196KB16 features: (1)8 Kbytes of On-Chip ROM/OTP Available; (2)232 Byte Register File; (3)Register-to-Register Architecture; (4)28 Interrupt Sources/16 Vectors; (5)1.75 ms 16 x 16 Multiply (16 MHz); (6)3.0 ms 32/16 Divide (16 MHz); (7)Powerdown and Idle Modes; (8)Five 8-Bit I/O Ports; (9)16-Bit Watchdog Timer; (10)12 MHz and 16 MHz Available; (11)Dedicated 15-Bit Baud Rate Generator; (12)Dynamically Configurable 8-Bit or 16-Bit Buswidth; (13)Full Duplex Serial Port; (14)High Speed I/O Subsystem; (15)16-Bit Timer; (16)16-Bit Up/Down Counter with Capture; (17)Pulse-Width-Modulated Output; (18)Y Four 16-Bit Software Timers.

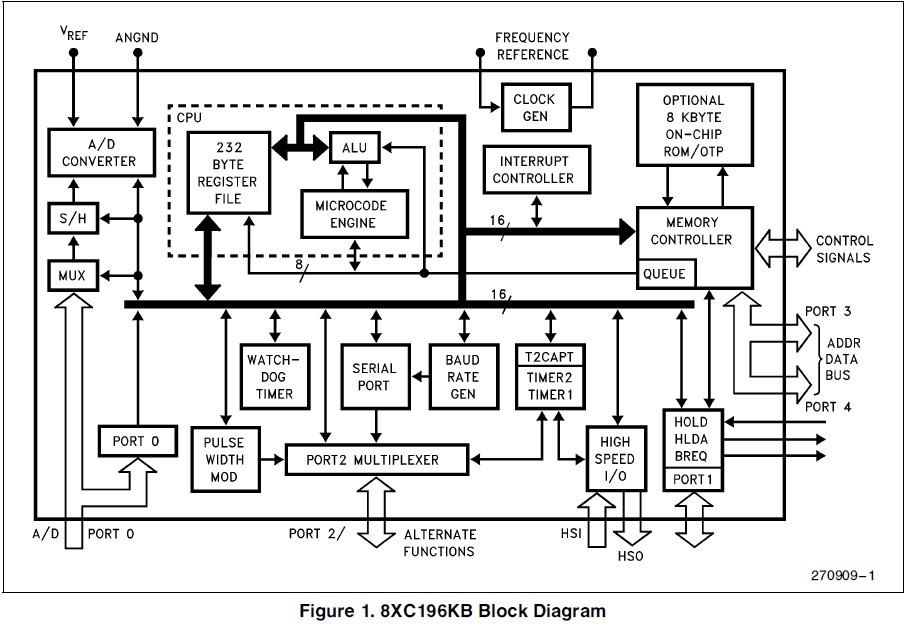

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EE80C196KB16 |
|
IC MPU 16BIT 5V 16MHZ 68PLCC |
Data Sheet |
Negotiable |
|
||||||
