Product Summary

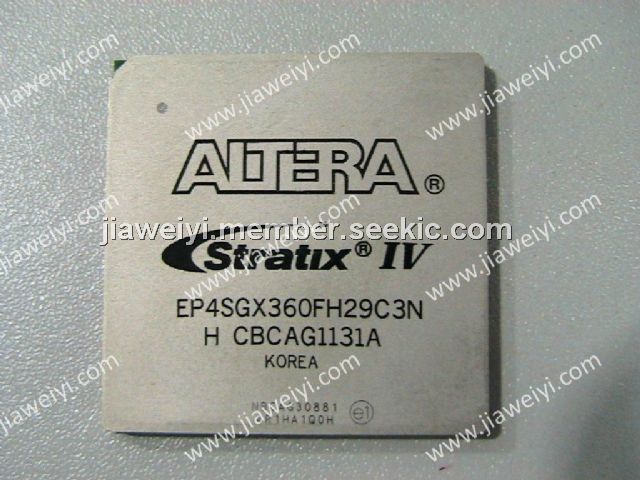

The EP4SGX360FH29C3N is an Field Programmable Gate Array.
Parametrics
EP4SGX360FH29C3N absolute maximum ratings: (1)VCC Core voltage and periphery circuitry power supply: -0.5 to 1.35 V; (2)VCCPT Power supply for programmable power technology: -0.5 to 2.25 V; (3)VCCPGM Configuration pins power supply: -0.5 to 3.75 V; (4)VCCAUX Auxiliary supply for the programmable power technology: -0.5 to 3.75 V; (5)VCCBAT Battery back-up power supply for design security volatile key register: -0.5 to 3.75 V; (6)VCCPD I/O pre-driver power supply: -0.5 to 3.75 V; (7)VCCIO I/O power supply: -0.5 to 3.9 V; (8)VCC_CLKIN Differential clock input power supply: -0.5 to 3.75 V; (9)VCCD_PLL PLL digital power supply: -0.5 to 1.35 V; (10)VCCA_PLL PLL analog power supply: -0.5 to 3.75 V; (11)VI DC input voltage: -0.5 to 4.0 V; (12)TJ Operating junction temperature: -40 to 100 ℃; (13)TSTG Storage temperature (No bias): -65 150 ℃.
Features
EP4SGX360FH29C3N specifications: (1)Series: Stratix IV GX; (2)Number of Logic Elements/Cells: 353600; (3)Number of LABs/CLBs: 14144; (4)Total RAM Bits: 23105536; (5)Number of I /O: 289; (6)Voltage - Supply: 0.87 V ~ 0.93 V; (7)Mounting Type: Surface Mount; (8)Operating Temperature: 0℃ ~ 85℃; (9)Package / Case: 780-BBGA Exposed Pad; (10)Supplier Device Package: 780-HBGA (33×33); (11)Lead Free Status: Lead free; (12)RoHS Status: RoHS Compliant.

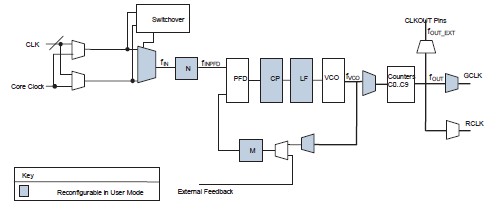

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP4SGX360FH29C3N |
|
IC STRATIX IV FPGA 360K 780HBGA |
Data Sheet |
|
|
||||||
