Product Summary

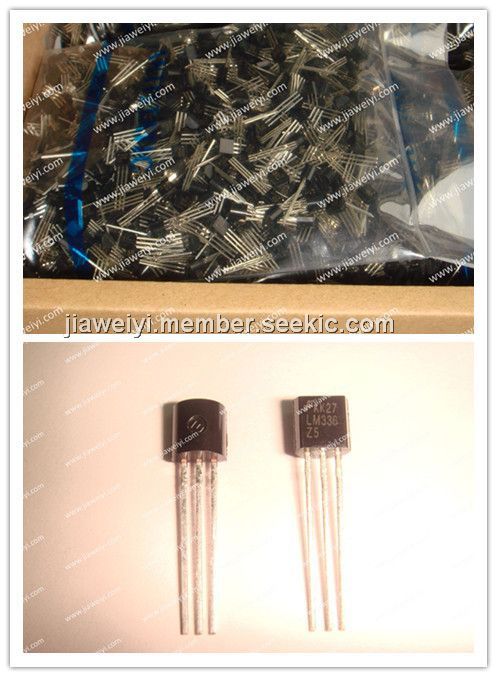

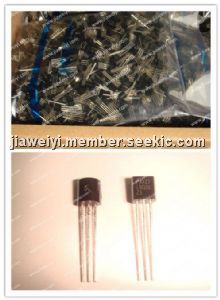

The LM336 5V is a precision 5.0V shunt regulator diode. The device voltage references operate as a low temperature coefficient 5.0V zener with 0.6Ω dynamic impedance. A third terminal on the LM336 5V allows the reference voltage and temperature coefficient to be trimmed easily. The LM336 5V is useful as a precision 5.0V low voltage reference for digital voltmeters, power supplies or op amp circuitry. The 5.0V makes it convenient to obtain a stable reference from low voltage supplies.

Parametrics

LM336 5V absolute maximum ratings: (1)Reverse Current:15mA; (2)Forward Current:10mA; (3)Storage Temperature:-60℃ to +150℃; (4)Operating temperature:0℃ to +70℃.

Features

LM336 5V features: (1)Adjustable 4V to 6V; (2)Low temperature coefficient; (3)Wide operating current of 600 μA to 10 mA; (4)0.6Ω dynamic impedance; (5)± 1% initial tolerance available; (6)Guaranteed temperature stability; (7)Easily trimmed for minimum temperature drift; (8)Fast turn-on; (9)Three lead transistor package.

Diagrams

LM336 5V pin configuration
