Product Summary

The ISD5008EY ChipCorder product is a fully-integrated, single-chip solution which provides seamless integration of enhanced voice record and playback features for digital cellular phones (GSM, CDMA, TDMA, PDC, and PHS), automotive communications, GPS/navigation systems, and portable communication products. The ISD5008EY enables customers to quickly and easily integrate 4 to 8 minutes of voice storage features such as one-way and two-way (full duplex) call record, voice memo record, and call screening/answering machine functionality. Like other ChipCorder products, the ISD5008EY integrates the sampling clock, anti-aliasing and smoothing filters, and the multi-level storage array on a single-chip.

Parametrics

ISD5008EY absolute maximum ratings: (1)Junction temperature:150℃; (2)Storage temperature range:–65℃ to +150℃; (3)Voltage applied to any pin:(VSS – 0.3 V) to (VCC + 0.3 V); (4)Voltage applied to MOSI, SCLK, INT, RAC and SS pins (Input current limited to ±20mA):(VSS – 1.0 V) to 5.5V; (5)Lead temperature (soldering – 10 seconds):300℃; (6)VCC – VSS:–0.3 V to +7.0 V.

Features

ISD5008EY features: (1)One or two-way (full duplex) conversation record (record signal summation); (2)One- or two-way (full duplex) message playback (while on a call); (3)Voice memo record and playback; (4)Private call screening ; (5)In-terminal answering machine; (6)Personalized outgoing message (given caller ID information from host chip set); (7)Private call announce while on call (given CIDCW information from host chip set).

Diagrams

ISD5008EY block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

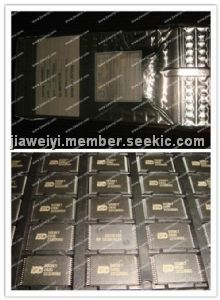

ISD5008EY
ISD5008EY


IC VOICE REC/PLAY 4-8MIN 28-TSOP

Data Sheet

0-234: $6.55
ISD5008EYI
ISD5008EYI


IC VOICE REC/PLAY 4-8MIN 28-TSOP

Data Sheet

Negotiable
