LTM4615EV#PBF

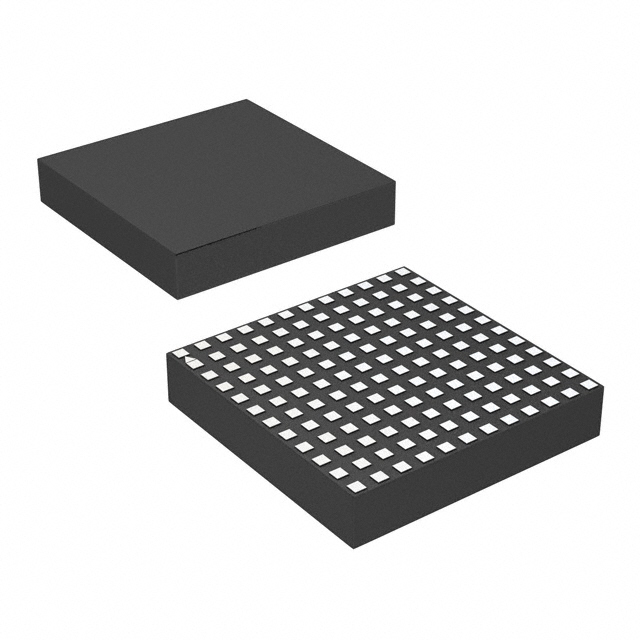

4A, 144LGA, Low Voltage DC/DC Regulator, 2.375V to 5.5V, LTM4615EV#PBF

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: LTM4615EV#PBF

Brand:: Linear Technology - Linear | Pack: LGA | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-27

From Other Seller

Part Number:LTM4615EV#PBF
US $1.00 - 2.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LTM4615EV#PBF is a complete 4A dual output switching mode DC/DC power supply plus an additional 1.5A VLDO (very low dropout) linear regulator. The LTM4615EV#PBF includes the switching controllers, power FETs, inductors, a 1.5A regulator and all support components. The LTM4615EV#PBF operates over an input voltage range of 2.375V to 5.5V, and the VLDO operates from a 1.14V to 3.5V input. The typical applications include: (1)Telecom and Networking Equipment; (2)Industrial Power Systems; (3)Low Noise Applications; (4)FPGA, SERDES Power.

Parametrics

LTM4615EV#PBF absolute maximum ratings: Switching Regulators: (1)VIN1, VIN2, PGOOD1, PGOOD2: –0.3V to 6V; (2)COMP1, COMP2, RUN/SS1, RUN/SS2, VFB1, VFB2,TRACK1, TRACK2: –0.3V to VIN; (3)SW, VOUT: –0.3V to (VIN + 0.3V); Very Low Dropout Regulator: (1)LDO_IN, PGOOD3: –0.3V to 6V; (2)LDO_OUT: –0.3 to 4V; (3)(EN3, FB3) to GND3: –0.3V to (LDO_IN + 0.3V); (4)LDO_OUT Short-Circuit: Indefi nite; (5)Internal Operating Temperature Range: –40℃ to 125℃; (6)Junction Temperature: 125℃; (7)Storage Temperature Range: –55℃ to 125℃.

Features

LTM4615EV#PBF features: (1)Dual 4A Output Power Supply with 1.5A VLDO.; (2)Short-Circuit and Overtemperature Protection; (3)Power Good Indicators; (4)Switching Regulators Section—Current Mode Control: Input Voltage Range: 2.375V to 5.5V; 4A DC Typical, 5A Peak Output Current Each; 0.8V Up to 5V Output Each, Parallelable; ±2% Total DC Output Error; Output Voltage Tracking; Up to 95% Efficiency; Programmable Soft-Start; (5)VLDO Section: VLDO, 1.14V to 3.5V Input Range; VLDO, 0.4V to 2.6V, 1.5A Output; VLDO, 40dB Supply Rejectioat fSW; ±1% Total DC Output Error; Small and Very Low Profile; Package: 15mm × 15mm × 2.82mm.
