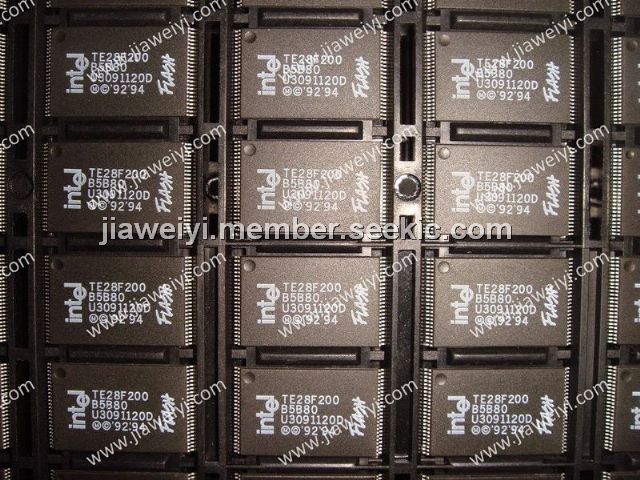

TE28F200B5B80

smart 5 boot block flash memory, 5V, 44-Lead TSOP, 100 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: TE28F200B5B80

Brand:: Intel Corporation - Intel | Pack: TSOP | D/C: 03+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-30

From Other Seller

Part Number:TE28F200B5B80
US $1.00 - 2.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TE28F200B5B80 is a smart 5 boot block flash memory. It provides pinout-compatible flash memories at the 2-, 4-, and 8-Mbit densities. The TE28F200B5B80 can be configured to operate either in 16-bit or 8-bit bus mode, with the data divided into individually erasable blocks.

Parametrics

TE28F200B5B80 absolute maxing ratings: (1)Commercial Operating Temperature: During Read/Erase/Program: 0 ℃ to +70 ℃, Temperature Under Bias: –10 ℃ to +80 ℃; (2)Extended Operating Temperature: During Read/Erase/Program: –40 ℃ to +85 ℃, Temperature Under Bias: –40 ℃ to +85 ℃; (3)Storage Temperature: –65 ℃ to +125 ℃; (4)Voltage on Any Pin(except VCC, VPP, A9 and RP#) with Respect to GND: –2.0 V to +7.0 V; (5)Voltage on Pin RP# or Pin A9 with Respect to GND: –2.0 V to +13.5 V; (6)VPP Program Voltage with Respect to GND during Block Erase and Word/Byte Program: –2.0 V to +14.0 V; (7)VCC Supply Voltage with Respect to GND: –2.0 V to +7.0 V; (8)Output Short Circuit Current: 100 mA.

Features

TE28F200B5B80 features: (1)SmartVoltage Technology: Smart 5 Flash: 5 V Reads, 5 V or 12 V Writes, Increased Programming Throughput at 12 V VPP; (2)Very High-Performance Read: 2-, 4-Mbit: 60 ns Access Time, 8-Mbit: 70 ns Access Time; (3)x8 or x8/x16-Configurable Data Bus; (4)Low Power Consumption: Max 60 mA Read Current at 5 V, Auto Power Savings: <1 mA Typical Standby Current; (5)Optimized Array Blocking Architecture: 16-KB Protected Boot Block, Two 8-KB Parameter Blocks, 96-KB and 128-KB Main Blocks, Top or Bottom Boot Locations; (6)Extended Temperature Operation: -40 ℃ to +85 ℃; (7)Industry-Standard Packaging: 40, 48-Lead TSOP, 44-Lead PSOP.
