Product Summary
The PRIXP420BB Product Line of Network Processors and IXC1100 Control Plane Processor are compliant with the ARM* Version 5TE instruction-set architecture (ISA). The Intel PRIXP420BB product line and IXC1100 control plane processors are designed with Intel state-of-the-art 0.18-μ production semiconductor process technology.
Parametrics
Absolute maximum ratings: (1)Ambient Air Temperature (Extended): -40℃ to 85℃; (2)Ambient Air Temperature (Commercial): 0℃ to 70℃; (3)Supply Voltage Core: -0.3 V to 2.1V; (4)Supply Voltage I/O: -0.3 V to 3.6V; (5)Supply Voltage Oscillator (VCCOSC): -0.3 V to 2.1V; (6)Supply Voltage Oscillator (VCCOSCP): -0.3 V to 3.6V; (7)Supply Voltage PLL (VCCPLL1): -0.3 V to 2.1V; (8)Supply Voltage PLL (VCCPLL2): -0.3 V to 2.1V; (9)Voltage On Any I/O Ball: -0.3 V to 3.6V; (10)Storage Temperature: -55℃ to 125℃.
Features
Features: (1)Intel XScale Core; (2)Three Network Processor Engines; (3)PCI Interface; (4)Two MII Interfaces; (5)UTOPIA-2 Interface; (6)USB v 1.1 Device Controller; (7)Two High-Speed, Serial Interfaces; (8)SDRAM Interface; (9)Encryption/Authentication; (10)High-Speed UART; (11)Console UART; (12)Internal Bus Performance Monitoring Unit; (13)16 GPIOs; (14)Four Internal Timers; (15)Packaging.

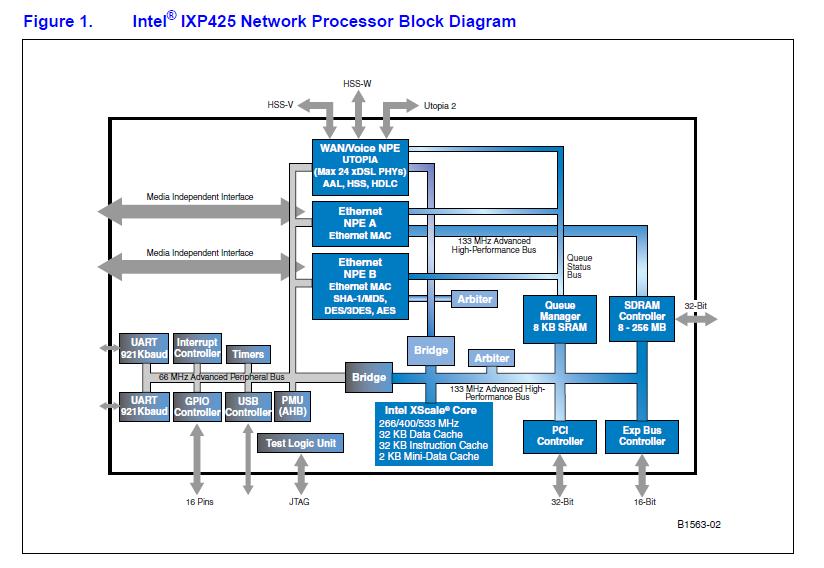

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

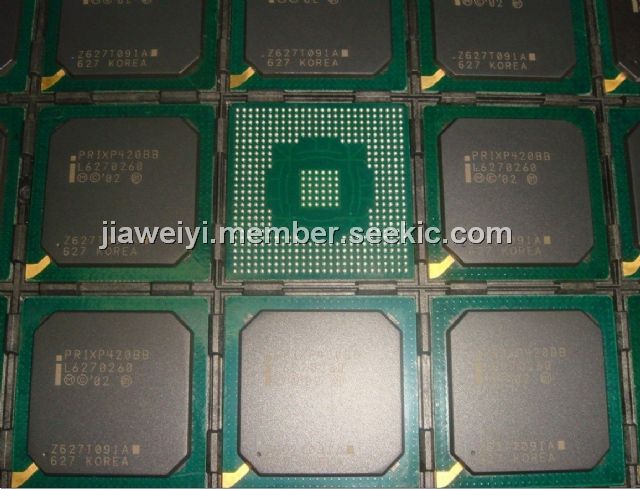

PRIXP420BB |
IC NETWRK PROCESSR 266MHZ 492BGA |
Data Sheet |
Negotiable |
|
||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
PRIXP420ABD |
Other |
Data Sheet |
Negotiable |
|
||||||
PRIXP420BB |
IC NETWRK PROCESSR 266MHZ 492BGA |
Data Sheet |
Negotiable |
|
||||||
PRIXP420BC |
IC NETWRK PROCESSR 400MHZ 492BGA |
Data Sheet |
Negotiable |
|
||||||
PRIXP420BD |
IC NETWRK PROCESSR 533MHZ 492BGA |
Data Sheet |
Negotiable |
|
||||||
PRIXP421BB |
IC NETWRK PROCESSR 266MHZ 492BGA |
Data Sheet |
Negotiable |
|
||||||
PRIXP422BB |
IC NETWRK PROCESSR 266MHZ 492BGA |
Data Sheet |
Negotiable |
|
