Product Summary
The 88PG847BB1-NAM1C000 is an intelligent digital synchronous step-down switching regulator with on-chip low-drop-out regulator controllers housed in a 3mm × 3mm QFN-16 package. Internally self-compensated, the 88PG847BB1-NAM1C000 requires no external compensation and work with low-ESR output capacitors to simplify the design, minimize the board space, and reduce the amount of external components. The applications of the 88PG847BB1-NAM1C000 include: portable computering, disk drive power supplies, 3.3V PCI express bus.
Parametrics
88PG847BB1-NAM1C000 absolute maximum ratings: (1)Signal input voltage to SGND=PGND SVIN: -0.3 to 6.0 V; (2)Power input voltage to SGND=PGND PVIN: -0.3 to 6.0 V; (3)Switch voltage to SGND=PGND VSW: 0.3 to (SVIN+0.3) V; (4)Switching regulator feedback voltage to SGND=PGND VSFB: 0.3 to (SVIN+0.3) V; (5)Operating temperature range TOP: -40 to 85 ℃; (6)Maximum junction temperature TJMAX: 125 ℃; (7)Storage temperature range TSTOR: -65 to 150 ℃; (8)ESD rating: 2 kV.
Features
88PG847BB1-NAM1C000 features: (1)1MHz switching frequency; (2)Low quiescent current of 1.9mA(typ); (3)Stable with ceramic output capacitor; (4)No external compensation required; (5)Over 95% efficiency; (6)Peak switch current limit up to 4.5A; (7)Input voltage range: 2.75V to 5.5V; (8)Serial/logic programmability; (9)Lead-free packages; (10)Built-in undervoltage lockout; (11)Over voltage protection; (12)Thermal shutdown protection; (13)Output voltage margining capability.

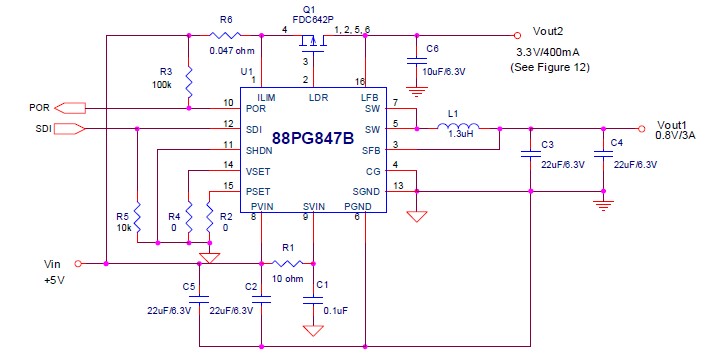

Diagrams
