Product Summary

The 88X2011-C2-BAN is an Integrated 10 Gbps 802.3ae Compliant Ethernet Transceiver. It is fully integrated single-chip devices that perform all the physical functions for 10 Gigabit Ethernet (GbE), LAN/WAN applications, delivering high-speed bi-directional point-to-point data transmissions. The 88X2011-C2-BAN has an integrated XGXS function for XAUI support. Each of these Alaska X 10 GbE PHYs is housed in design-effi cient 256-pin 17x17 TFBGA packages. The 88X2011-C2-BAN is integrated, fl exible solutions for system-level or module applications. The device supports both XGMII and XAUI MAC interfaces, while additionally offering LAN and WAN line-side support, thus presenting a full portfolio of products for any application. Its small footprint facilitates XENPAK, XPAK, and X2 module applications.

Features

88X2011-C2-BAN features: (1)XAUI system-side interface (88X2011/10); (2)Fully integrated limiting amplifi er, CMU/CDR, SERDES, PCS/PMA; (3)Optional WIS for EOS (Ethernet Over SONET) and WAN applications ; (4)Integrated XFP reference clock output (divide by 64) ; (5)Exceed SONET jitter requirements; (6)XG-MDC/MDIO management interface; (7)Industrial temperature support.

Diagrams

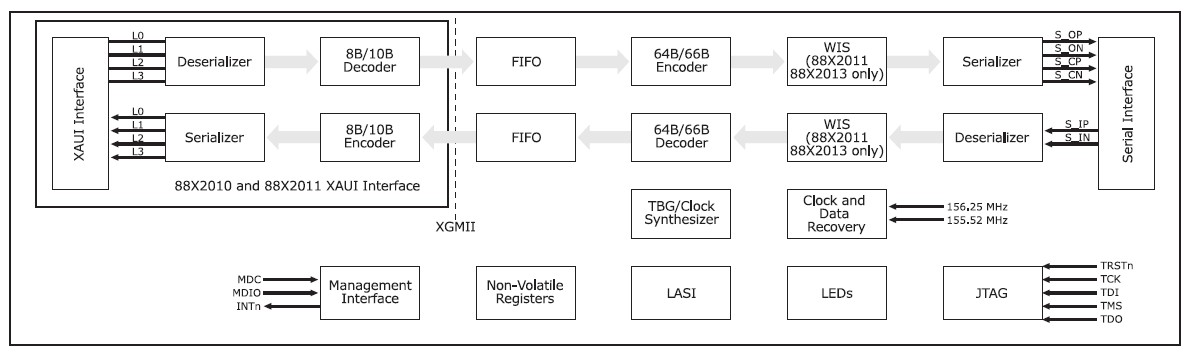

88X2011-C2-BAN block diagram

88X2010-BAN
88X2010-BAN
