Product Summary

The AK8406 is a Shading Correction LSI.

Parametrics

AK8406 absolute maximum ratings: (1)VD:-0.3V to 6.7V; (2)VA:-0.3V to 6.7V; (3)VTD:-0.3V to VD+0.3V; (4)VTA:-0.3V to VA+0.3V; (5)Ta:0 to 70℃; (6)Tstg:-55 to 125℃; (7)Tsol:260℃,10s.

Features

AK8406 features: (1)ID:5mA; (2)IA:80mA; (3)VIH:2.4V; (4)VIL:0.8V; (5)VOH:3.0V; (6)VOL:0.4V; (7)ILi:-10 to 10uA.

Diagrams

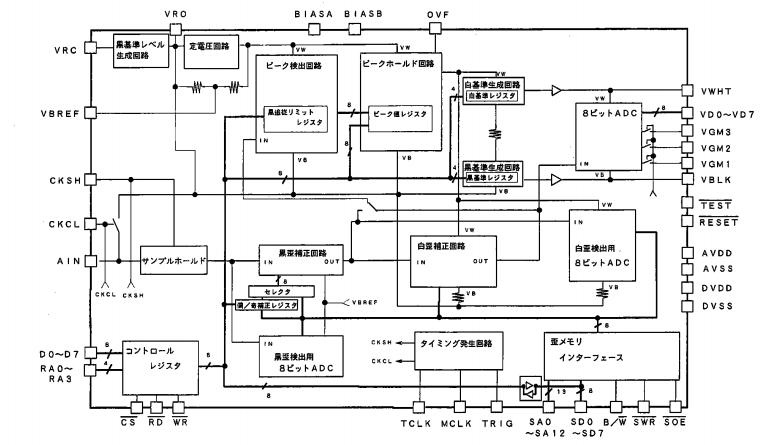

AK8406 block diagram
