Product Summary

The AT49LV001NT-70TI is a 3-volt-only in-system reprogrammable Flash Memory. Its 1 megabit of memory is organized as 131,072 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the AT49LV001NT-70TI offers access times to 70ns with power dissipation of just 90 mW over the commercial temperature range. When the AT49LV001NT-70TI is deselected, the CMOS standby current is less than 50 uA.

Parametrics

AT49LV001NT-70TI absolute maximum ratings: (1)Temperature Under Bias:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)All Input Voltages(including NC Pins) with Respect to Ground:-0.6V to +6.25V; (4)All Output Voltages with Respect to Ground:-0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground:-0.6V to +13.5V.

Features

AT49LV001NT-70TI features: (1)Single Supply for Read and Write: 2.7V to 3.6 (BV), 3.0 to 3.6V(LV); (2)Fast Read Access Time - 70 ns ; (3)Internal Program Control and Timer ; (4)Sector Architecture:One 16K Byte Boot Block with Programming Lockout, Two 8K Byte Parameter Blocks, Two Main Memory Blocks(32K, 64K) Bytes; (5)Fast Erase Cycle Time - 10 seconds; (6)Byte By Byte Programming - 30us/Byte Typical; (7)Hardware Data Protection ; (8)DATA Polling For End Of Program Detection ; (9)Low Power Dissipation: 25 mA Active Current, 50uA CMOS Standby Current ; (10)Typical 10,000 Write Cycles.

Diagrams

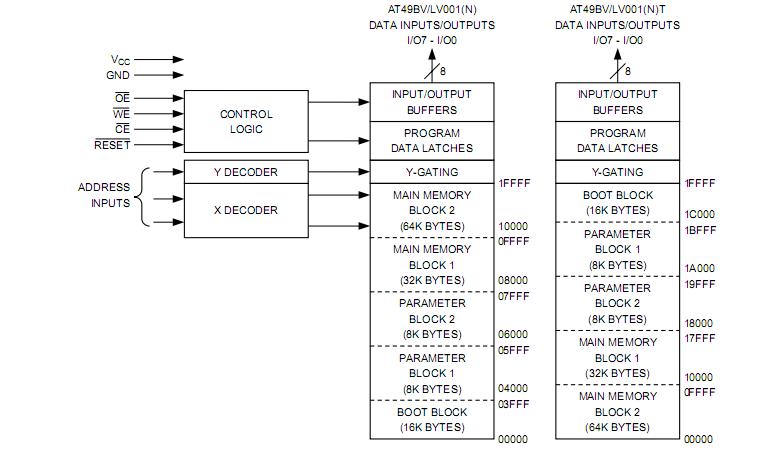

AT49LV001NT-70TI block diagram
