Product Summary
The S71PL064JA0BFW0P0 is a product line of Product (MCP) packages and consists of: One or more (Simultaneous Read/Write) Flash memory die. The 256 Mb Flash memory consists of two S29PL127J devices. In this case, CE#f2 is used to access the second Flash and no extra address lines are required. Stacked Multi-Chip Product (MCP) Flash Memory and RAM 256M/128/64/32 Megabit (16/8/4/2M x 16-bit) CMOS 3.0 Volt-only Simultaneous Operation Page Mode Flash Memory and 64/32/16/8/4 Megabit Static RAM/Pseudo Static RAM.
Parametrics
Flash Memory: (1)Flash Access time (ns): 65 ns; (2)(p)SRAM density: 8M SRAM; (3)(p)SRAM Access time (ns): 70 ns; (4)(p)SRAM type: SRAM1; (5)Package: TLC056.
Features
Features: (1)Power supply voltage of 2.7 V to 3.1 V; (2)High performance: 65 ns (65 ns Flash, 70 ns pSRAM); (3)Packages: 7 x 9 x 1.2mm 56 ball FBGA, 8 x 11.6 x 1.2mm 64 ball FBGA, 8 x 11.6 x 1.4mm 84 ball FBGA; (4)Operating Temperature: -25℃ to +85℃, -40℃ to +85℃.

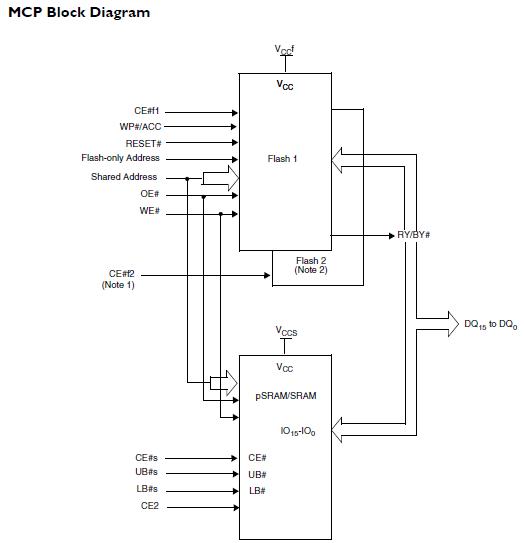

Diagrams
 |
