Product Summary

The BTS5215L is a smart high-side power switch with two channels: 2 x 90m and Status Feedback. Infineon Technologies AG. N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, is monolithically integrated in Smart SIPMOS technology. The BTS5215L provides embedded protective functions.

Parametrics

BTS5215L absolute maximum ratings: (1)Supply voltage (overvoltage protection see page 6) Vbb: 43 V; (2)Supply voltage for full short circuit protection Tj,start =-40 to +150℃ Vbb: 36 V; (3)Load current (Short-circuit current, see page 6) IL: self-limited A; (4)Operating temperature range Tj: -40 to +150℃; (5)Storage temperature range Tstg: -55 to +150℃; (6)Current through input pin (DC) IIN: ±0.3 mA; (7)Pulsed current through input pin5) IINp: ±5.0 mA; (8)Current through status pin (DC) IST: ±5.0 mA.

Features

BTS5215L features: (1)Very low standby current; (2)CMOS compatible input; (3)Improved electromagnetic compatibility (EMC); (4)Fast demagnetization of inductive loads; (5)Stable behaviour at undervoltage; (6)Wide operating voltage range; (7)Logic ground independent from load ground.

Diagrams

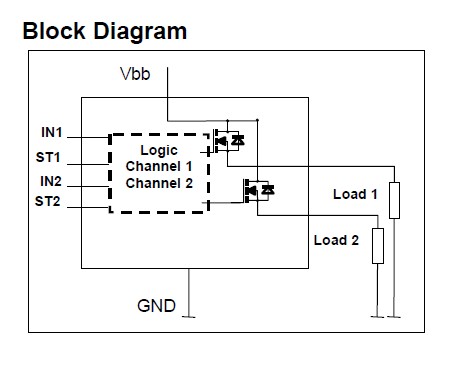

BTS5215L block diagram
