Product Summary

The CS5535-UDCF is an I/O Companion Multi-Function South Bridge. It provides a systemlevel solution well suited for the high-performance and lowpower needs of a host of information appliances that includes digital set-top boxes, personal access devices, and thin client applications. The CS5535-UDCF incorporates many I/O functions, including those found in typical SuperI/O chips, simplifying many system designs. The CS5535-UDCF contains state-of-the-art power management that enables systems, especially battery powered systems, to significantly reduce power consumption.

Parametrics

CS5535-UDCF absolute maximum ratings: (1)Operating Case Temperature: -65 to 110 ℃; (2)Storage Temperature: -65 to 150 ℃; (3)Core Supply: 1.6 V; (4)I/O Supply: 3.6 V; (5)Voltage on Non-5V Tolerant Balls: -0.5 to 3.6 V; (6)Voltage on 5V Tolerant Balls: -0.5 to 5.5 V.

Features

CS5535-UDCF features: (1)Designed for use with National’s Geode GX2 processor series; (2)208-Terminal PBGA (plastic ball grid array) package; (3)3.3V I/O and 1.5V (nominal) Core operation; (4)Low power operation: less than 1.0W in Working state; (5)Working and Standby power domains; (6)IEEE 1149.1 compliant TAP and boundary scan.

Diagrams

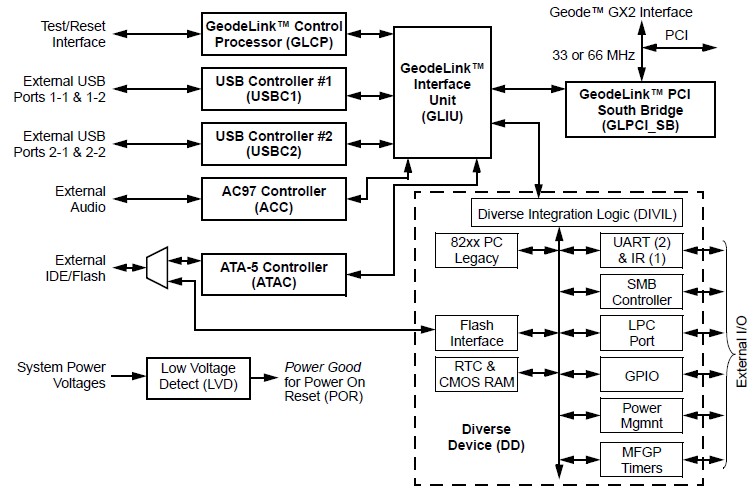

CS5535-UDCF diagram
