Product Summary
The DS3902U-530+ is a Dual, NV, Variable Resistor with User EEPROM. It can operate over a wide supply range of 2.4V to 5.5V, and communication with the device is achieved through an I2C-compatible serial interface. The low cost and the small size of the DS3902U-530+ make it an ideal replacement for conventional mechanical-trimming resistors. The applications of the DS3902U-530+ are Optical Transceivers, Optical Transponders, Instrumentation and Industrial Controls, RF Power Amps, Audio Power-Amp Biasing, Replacement for Mechanical Variable Resistors and DIP Switches.
Parametrics
DS3902U-530+ absolute maximum ratings: (1)Voltage Range on VCC, SDA, SCL, H0, and H1 Relative to Ground:-0.5V to +6.0V; (2)Voltage Range on ADD_SEL Relative ; (3)to Ground:-0.5V to (VCC + 0.5V), not to exceed 6.0V; (4)Resistor Current:3mA; (5)Operating Temperature Range:-40℃ to +95℃; (6)Programming Temperature Range:0℃ to +70℃; (7)Storage Temperature Range:-55℃ to +125℃.
Features
DS3902U-530+ features: (1)Dual 256-Position Linear Digital Resistors; (2)Available as 50kΩ/30kΩ or 50kΩ/15kΩ; (3)Resistor Settings Stored in NV Memory; (4)Low Temperature Coefficient; (5)I2C-Compatible Serial Interface; (6)Wide Operating Voltage (2.4V to 5.5V); (7)Software Write Protection; (8)User-EEPROM Memory; (9)Programmable Slave Address; (10)Operating Temperature Range: -40℃ to +95℃; (11)Small 8-Pin μSOP Package.

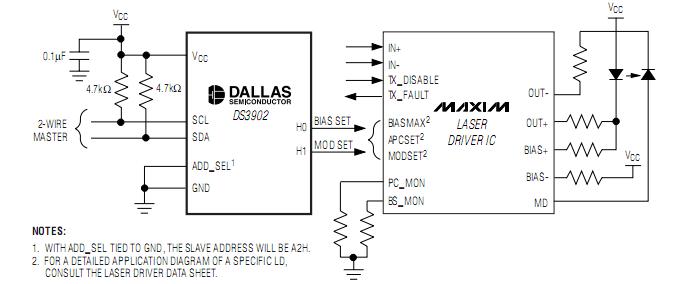

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DS3902U-530+ |
Maxim Integrated Products |
Digital Potentiometer ICs Dual NV Variable w/EEPROM |
Data Sheet |
|
|
||||||||||||
|
DS3902U-530+T&R |
Maxim Integrated Products |
Digital Potentiometer ICs Dual NV Variable w/EEPROM |
Data Sheet |
|
|
||||||||||||
