Product Summary
The EE80C196MD is a 16-bit microcontroller designed primarily to control 3 phase AC induction and DC brushless motors. The EE80C196MD is based on Intels MCSE 96 16-bit microcontroller architecture and is manufactured with Intels CHMOS process. The device has a three phase waveform generator specifically designed for use in "Inverter" motor control applications. This peripheral of the EE80C196MD allows for pulse width modulation, three phase sine wave generation with minimal CPU intervention. It generates 3 complementary non-overlapping PWM pulses with resolutions of 0.125 us (edge trigger) or 0.250 us (centered). The EE80C196MD has 16 Kbytes on-chip OTPROM/ROM and 488 bytes of on-chip RAM. It is available in two packages; PLCC (84-L) and EIAJ/QFP (80-L).
Parametrics
EE80C196MD absolute maximum ratings: (1)Ambient Temperature Under Bias: -40 to 85℃; (2)Storage Temperature: -65 to 150℃; (3)Voltage from EA or VPP to VSS or ANGND: -0.5V to +13.00V; (4)Voltage on Any Other Pin to VSS or ANGND: -0.5V to +7.0V; (5)Power Dissipation: 1.5W.
Features
EE80C196MD features: (1)High-Performance CHMOS 16-Bit CPU; (2)16 Kbytes of On-Chip OTPROM/; (3)Factory-Programmed OTPROM; (4)488 bytes of On-Chip Register RAM; (5)Register to Register Architecture; (6)Up to 64 I/O Lines; (7)Peripheral Transaction Server (PTS) with 17 Prioritized Sources; (8)Event Processor Array (EPA): 6 High Speed Capture/Compare Modules; 6 High Speed Compare Modules; (9)Extended Temperature Standard; (10)Programmable Frequency Generator; (11)Two 16-Bit Timers with Quadrature Counting Input; (12)3-Phase Complementary Waveform Generator; (13)14 Channel 8/10-Bit A/D with Sample/Hold with Zero Offset Adjustment H/W; (14)18 Prioritized Interrupt Sources; (15)Flexible 8-/16-Bit External Bus; (16)1.75 us 16 x 16 Multiply; (17)3 us 32/16 Divide; (18)Idle and Power Down Modes.

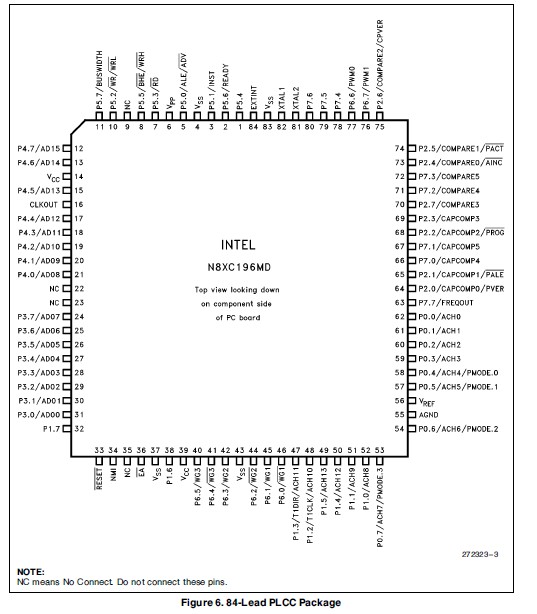

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EE80C196MD |
|
IC MPU 16-BIT 5V 16MHZ 84-PLCC |
Data Sheet |
Negotiable |
|
||||||
