Product Summary
The K4M513233C-DN75 is a 536,870,912 bits synchronous high data rate Dynamic RAM organized as 4 x 4,196,304 words by 32 bits. The K4M513233C-DN75 is fabricated with SAMSUNG’s high performance CMOS technology. Synchronous design allows precise cycle control with the use of system clock and I/O transactions are possible on every clock cycle. Range of operating frequencies, programmable burst lengths and programmable latencies allow the same device to be useful for a variety of high bandwidth and high performance memory system applications.
Parametrics
K4M513233C-DN75 absolute maximum ratings: (1)Voltage on any pin relative to Vss:-1.0 to 4.6 V; (2)Voltage on VDD supply relative to Vss:-1.0 to 4.6 V; (3)Storage temperature:-55 to +150℃; (4)Power dissipation:1.0 W; (5)Short circuit current:50 mA.
Features
K4M513233C-DN75 features: (1)3.0V & 3.3V power supply; (2)LVCMOS compatible with multiplexed address; (3)Four banks operation; (4)MRS cycle with address key programs; (5)EMRS cycle with address key programs; (6)All inputs are sampled at the positive going edge of the system clock; (7)Burst read single-bit write operation; (8)Special Function Support: PASR (Partial Array Self Refresh), Internal TCSR (Temperature Compensated Self Refresh); (9)DQM for masking; (10)Auto refresh; (11)64ms refresh period (8K cycle); (12)Commercial Temperature Operation (-25℃ to 70℃); (13)Extended Temperature Operation (-25℃ to 85℃); (14)90Balls FBGA ( -SXXX -Pb, -DXXX -Pb Free).

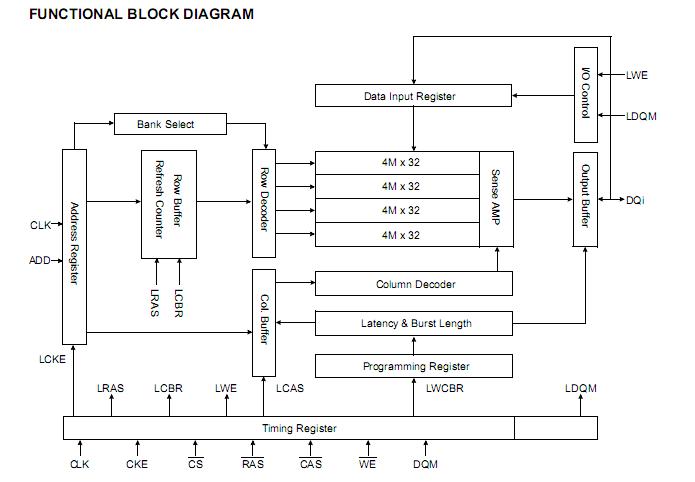

Diagrams
 |
