Product Summary
The LM317MDTX/NOPB is a 3-Terminal Adjustable Regulator. It is capable of supplying in excess of 1.5A over a 1.2V to 37V output range. The LM317MDTX/NOPB is exceptionally easy to use and require only two external resistors to set the output voltage. Further, both line and load regulation are better than standard fixed regulators. Also, the LM317MDTX/NOPB is packaged in standard transistor packages which are easily mounted and handled.
Parametrics
LM317MDTX/NOPB absolute maximum ratings: (1)Power Dissipation:Internally Limited; (2)Input-Output Voltage Differential:+40V, -0.3V; (3)Storage Temperature:-65℃ to +150℃; (4)Lead Temperature: Metal Package (Soldering, 10 seconds):300℃, Plastic Package (Soldering, 4 seconds):260℃; (5)ESD Tolerance:3 kV.
Features
LM317MDTX/NOPB features: (1)Guaranteed 1% output voltage tolerance; (2)Guaranteed max. 0.01%/V line regulation; (3)Guaranteed 1.5A output current; (4)Adjustable output down to 1.2V; (5)Current limit constant with temperature; (6)P+ Product Enhancement tested; (7)80 dB ripple rejection; (8)Output is short-circuit protected.

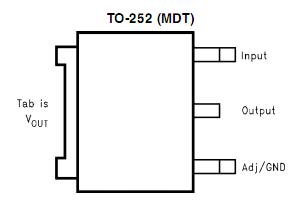

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM317MDTX/NOPB |
National Semiconductor (TI) |
Linear Regulators - Standard |
Data Sheet |
|
|
||||||||||||
