M48T86PC1

industry standard, PC Real Time Clock, 5V, 24-DIP, Lead Free, selectable bus timing

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.80~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.80~2.00

PartNumber:: M48T86PC1

Brand:: STMicroelectronics - ST | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-16

From Other Seller

Part Number:M48T86PC1
US $1.80 - 2.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

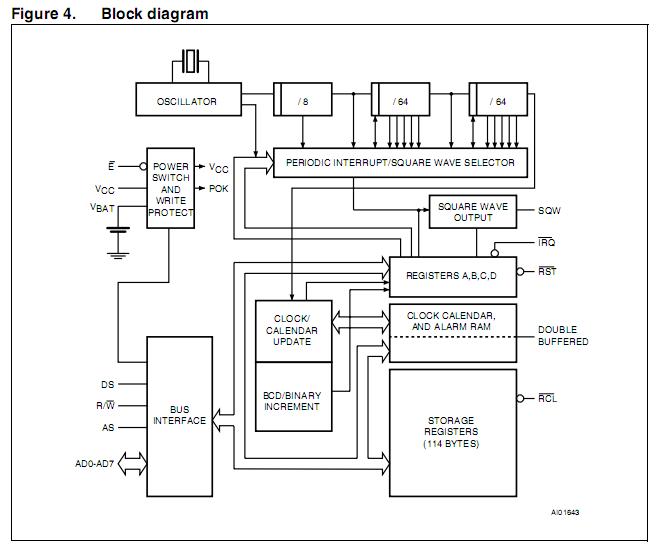

The M48T86PC1 is an industry standard Real Time Clock (RTC). The M48T86PC1 is composed of a lithium energy source, quartz crystal, write protection circuitry, and a 128-byte RAM array. This provides the user with a complete subsystem packaged in either a 24-pin DIP CAPHAT or 28-pin SNAPHAT SOIC. Functions available to the user include a non-volatile time-of-day clock, alarm interrupts, a one-hundred-year clock with programmable interrupts, square wave output, and 128 bytes of non-volatile static RAM.

Parametrics

M48T86PC1 absolute maximum ratings: (1)TA, Ambient Operating Temperature: 0 to 70℃; (2)TSTG, Storage Temperature (VCC Off, Oscillator Off): –40 to 85℃; (3)TSLD, Lead Solder Temperature for 10 seconds: 260℃; (4)VIO, Input or Output Voltages: –0.3 to 7.0 V; (5)VCC, Supply Voltage: –0.3 to 7.0 V; (6)PD, Power Dissipation: 1 W.

Features

M48T86PC1 features: (1)drop-in replacement for PC computer clock/calendar; (2)counts seconds, minutes, hours, days, day of the week, date, month, and year with leap year compensation; (3)interfaced with software as 128 ram locations: 14 Bytes of clock and control registers; 114 Bytes of general purpose RAM; (4)selectable bus timing (intel/motorola); (5)three interrupts are separately software-maskable and testable: time-of-day alarm (once/second to once/day); periodic rates from 122μs to 500ms; end-of-clock update cycle; (6)programmable square wave output; (7)10 years of data retention and clock operation in the absence of power; (8)self-contained battery and crystal in the caphat DIP package; (9)packaging includes a 28-lead SOIC and snaphat TOP (to be ordered separately); (10)SOIC package provides direct connection for a snaphat top contains the battery and crystal; (11)pin and function compatible with bq3285/7A and DS12887.
