MC33171DR2G

3.0 V to 44 V, Low Power Operational Amplifier, 8-SOIC, General Purpose, 27mA, 1.8MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.21~0.23 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.21~0.23

PartNumber:: MC33171DR2G

Brand:: ON Semiconductor - ON | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-16

From Other Seller

Part Number:MC33171DR2G
US $0.21 - 0.23
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

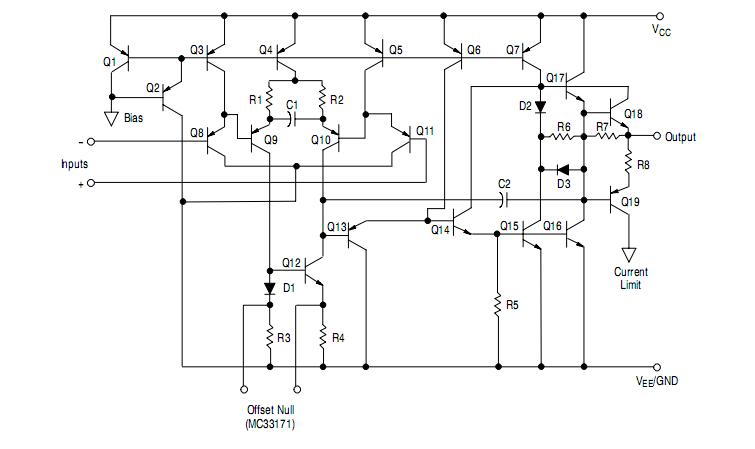

The MC33171DR2G is a Low Power Operational Amplifier. It operates at 180uA per amplifier and offers 1.8 MHz of gain bandwidth product and 2.1 V/us slew rate without the use of JFET device technology. Although the MC33171DR2G can be operated from split supplies, it is particularly suited for single supply operation, since the common mode input voltage includes ground potential (VEE). The MC33171DR2G is specified over the industrial/automotive temperature ranges.

Parametrics

MC33171DR2G absolute maximum ratings: (1)Supply Voltage:±22 V; (2)Operating Junction Temperature:+150℃; (3)Storage Temperature Range:-65 to +150℃.

Features

MC33171DR2G features: (1)Low Supply Current: 180 uA (Per Amplifier); (2)Wide Supply Operating Range: 3.0 V to 44 V or ±1.5 V to ±22 V; (3)Wide Input Common Mode Range, Including Ground (VEE); (4)Wide Bandwidth: 1.8 MHz; (5)High Slew Rate: 2.1 V/us; (6)Low Input Offset Voltage: 2.0 mV; (7)Large Output Voltage Swing: -14.2 V to +14.2 V(with ±15 V Supplies); (8)Large Capacitance Drive Capability: 0 pF to 500 pF; (9)Low Total Harmonic Distortion: 0.03%; (10)Excellent Phase Margin: 60°; (11)Excellent Gain Margin: 15 dB; (12)Output Short Circuit Protection; (13)ESD Diodes Provide Input Protection for Dual and Quad; (14)Pb-Free Packages are Available; (15)NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes.
