Product Summary
The MIC49150YMM is a high-bandwidth, low-dropout, 1.5A voltage regulator. It is ideal for powering core voltages of lowpower microprocessors. The MIC49150YMM requires a bias input supply and a main input supply, allowing for ultra-low input voltages on the main supply rail. The input supply operates from 1.4V to 6.5V and the bias supply requires between 3V and 6.5V for proper operation. The applications of the MIC49150YMM are Graphics processors, PC add-in cards, Microprocessor core voltage supply, Low voltage digital ICs, High efficiency linear power supplies, SMPS post regulators.
Parametrics
MIC49150YMM absolute maximum ratings:(1)Supply Voltage (VIN): 8V; (2)Bias Supply Voltage (VBIAS): 8V; (3)Enable Input Voltage (VEN): 8V; (4)Power Dissipation: Internally Limited; (5)ESD Rating: 4kV; (6)Supply Voltage (VIN): 1.4V to 6.5V; (7)Bias Supply Voltage (VBIAS): 3V to 6.5V; (8)Enable Input Voltage (VEN): 0V to 6.5V; (9)Junction Temperature (TJ): –40℃ ≤ TJ ≤ +125℃; (10)Package Thermal Resistance MSOP-8 (θJA): 80℃/W; (11)Package Thermal Resistance S-Pak (θJC): 2℃/W.
Features
MIC49150YMM features: (1)Input Voltage Range: VIN: 1.4V to 6.5V, VBIAS: 3.0V to 6.5V; (2)Stable with 1μF ceramic capacitor; (3)±1% initial tolerance; (4)Maximum dropout voltage (VIN–VOUT) of 500mV over temperature; (5)Adjustable output voltage down to 0.9V; (6)Ultra fast transient response (Up to 10MHz bandwidth); (7)Excellent line and load regulation specifications; (8)Logic controlled shutdown option; (9)Thermal shutdown and current limit protection; (10)Power MSOP-8 and S-Pak packages; (11)Junction temperature range: –40℃ to 125℃.

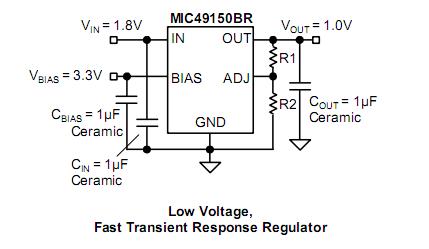

Diagrams

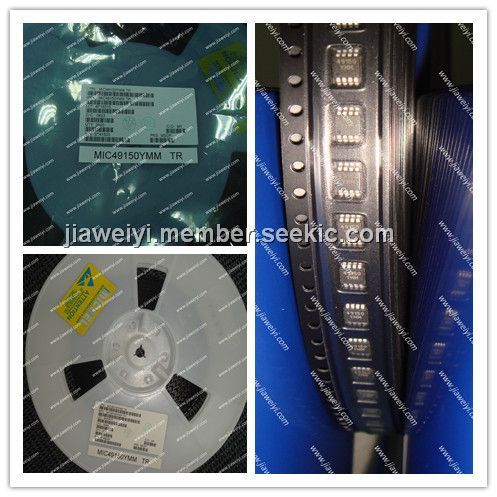

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MIC49150YMM |
|
IC REG LDO ADJ 1.5A 8MSOP |
Data Sheet |
|
|
||||||||||||||
|
MIC49150YMM TR |
|
IC REG LDO ADJ 1.5A 8MSOP |
Data Sheet |
|
|
||||||||||||||
