Product Summary
The MPC8255ACZUMHBB is a Communication Processor.
Parametrics
MPC8255ACZUMHBB absolute maximum ratings: (1)Core supply voltage VDD: -0.3 to 2.5 V; (2)PLL supply voltage VCCSYN: -0.3 to 2.5 V; (3)I/O supply voltage VDDH: -0.3 to 4.0 V; (4)Input voltage VIN: GND(-0.3) to 3.6 V; (5)Junction temperature Tj: 120 ℃; (6)Storage temperature range TSTG: (-55) – (+150) ℃.
Features
MPC8255ACZUMHBB features: (1)A core version of the EC603e microprocessor; (2)System core microprocessor supporting frequencies of 150–300MHz; (3)Separate 16-Kbyte data and instruction caches: Four-way set associative, Physically addressed, LRU replacement algorithm; (4)PowerPC architecture-compliant memory management unit (MMU); (5)Common on-chip processor (COP) test interface; (6)High-performance (6.6–7.65 SPEC95 benchmark at 300 MHz; 1.68 MIPs/MHz without inlining and 1.90 Dhrystones MIPS/MHz with; (7)Supports bus snooping for data cache coherency; (8)Floating-point unit (FPU).

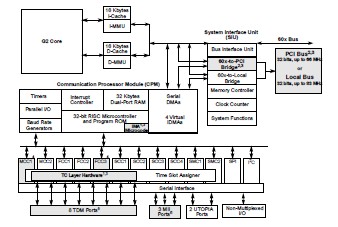

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MPC8255ACZUMHBB |
Freescale Semiconductor |
Microprocessors (MPU) POWERQUICC II HIP4 REV B |
Data Sheet |
|
|
||||||||||||
