BTS621L1-E3128A

Product Summary

The BTS621L1-E3128A is a kind of N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology. It provides embedded protective functions. The typical applications of the BTS621L1-E3128A include μcompatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads, All types of resistive, inductive and capacitve loads, Replaces electromechanical relays, fuses and discrete circuits.

Parametrics

BTS621L1-E3128A absolute maximum ratings: (1)Supply voltage (overvoltage protection), Vbb: 43 V; (2)Supply voltage for full short circuit protection when Tj Start=-40 to +150℃, Vbb: 34 V; (3)Load dump protection when VLoadDump = UA + Vs, UA = 13.5 V, RI= 2 Ω, RL= 2.7 Ω, td= 200 ms, IN= low or high, VLoad dump: 60 V; (4)Load current (Short circuit current), IL: self-limited; (5)Operating temperature range, Tj: -40 to +150℃; (6)Storage temperature range, Tstg: -55 to +150℃; (7)Power dissipation (DC), TC ≤ 25 ℃, Ptot: 75 W; (8)Inductive load switch-off energy dissipation when single pulse Vbb = 12V, Tj,start = 150℃, TC = 150℃ const., EAS: 395 mJ when one channel, IL = 4.4 A, ZL = 32 mH, 0 Ω; 790 mJ when both channels parallel, IL = 8.5 A, ZL = 17 mH, 0 Ω; (9)Electrostatic discharge capability (ESD) (Human Body Model), VESD: 1.0 kV when pin IN and 2.0 kV when all other pins; (10)Input voltage (DC), VIN: -10 to +16 V; (11)Current through input pin (DC), IIN: ±2.0 mA; (12)Current through status pin (DC), IST: ±5.0 mA.

Features

BTS621L1-E3128A features: (1)Overload protection ; (2)Current limitation ; (3)Short circuit protection ; (4)Thermal shutdown ; (5)Overvoltage protection (including load dump) ; (6)Fast demagnetization of inductive loads ; (7)Reverse battery protection1) ; (8)Undervoltage and overvoltage shutdown with auto-restart and hysteresis ; (9)Open drain diagnostic output ; (10)Open load detection in ON-state ; (11)CMOS compatible input ; (12)Loss of ground and loss of Vbb protection ; (13)Electrostatic discharge (ESD) protection.

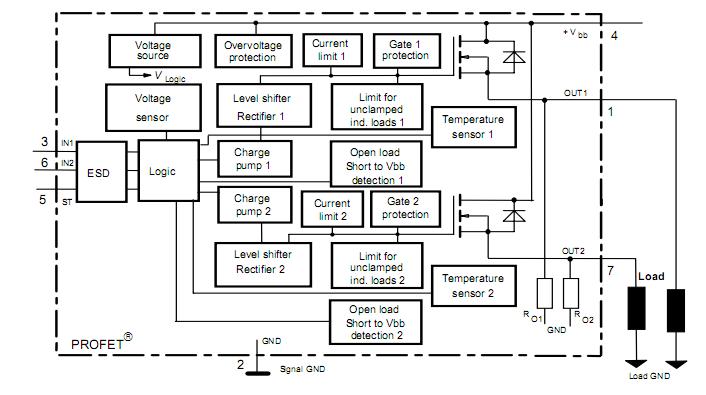

Diagrams
