Product Summary
The MX29LV065MTC-90G is a 128m-bit single voltage 3v only uniform sector flash memory. It is organized as 16M bytes of 8 bits or 8M words of 16 bits. MXIC’s Flash memory offers the most cost-effective and reliable read/write non-volatile random access memory. The MX29LV065MTC-90G is packaged in 56-pin TSOP. The MX29LV065MTC-90G is designed to be reprogrammed and erased in system or in standard EPROM programmers.
Parametrics
MX29LV065MTC-90G absolute maximum ratings: (1)Storage Temperature Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground VCC: -0.5 V to +4.0 V, A9, OE#, and RESET#: -0.5 V to +12.5 V, All other pins: -0.5 V to VCC +0.5 V; (4)Output Short Circuit Current: 200 mA.
Features
MX29LV065MTC-90G features: (1)Single Power Supply Operation - 2.7 to 3.6 volt for read, erase, and program operations; (2)Sector Protection/Chip Unprotect; (3)Secured Silicon Sector; (4)Latch-up protected to 250mA from -1V to VCC + 1V; (5)Low VCC write inhibit is equal to or less than 1.5V; (6)Compatible with JEDEC standard - Pin-out and software compatible to single power supply Flash.

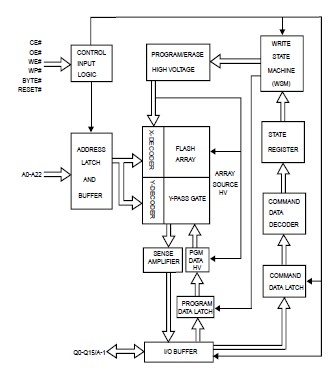

Diagrams
 |
