Product Summary
The EX256-TQG100 is an FPGA. It is a low-cost solution for low-power, high-performance designs. The inherent low power attributes of the antifuse technology, coupled with an additional low static power mode, makes the EX256-TQG100 ideal for power-sensitive applications. Fabricated with an advanced 0.22um CMOS antifuse technology, the EX256-TQG100 achieves high performance with no power penalty.
Parametrics
EX256-TQG100 absolute maximum ratings: (1)DC Supply Voltage for I/Os:–0.3 to +6.0 V; (2)DC Supply Voltage for Array:–0.3 to +3.0 V; (3)Input Voltage:–0.5 to +5.75 V; (4)Output Voltage:–0.5V to +VCCI; (5)Storage Temperature:–65 to +150℃.
Features
EX256-TQG100 features: (1)240 MHz System Performance; (2)350 MHz Internal Performance; (3)3.9 ns Clock-to-Out (Pad-to-Pad); (4)3,000 to 12,000 Available System Gates; (5)Maximum 512 Flip-Flops (Using CC Macros); (6)0.22μm CMOS Process Technology; (7)Up to 132 User-Programmable I/O Pins; (8)High-Performance, Low-Power Antifuse FPGA; (9)LP/Sleep Mode for Additional Power Savings ; (10)Advanced Small-Footprint Packages; (11)Hot-Swap Compliant I/Os; (12)Single-Chip Solution; (13)Nonvolatile; (14)Live on Power-Up; (15)No Power-Up/Down Sequence Required for Supply Voltages; (16)Configurable Weak-Resistor Pull-Up or Pull-Down for Tristated Outputs during Power-Up Individual Output Slew Rate Control.

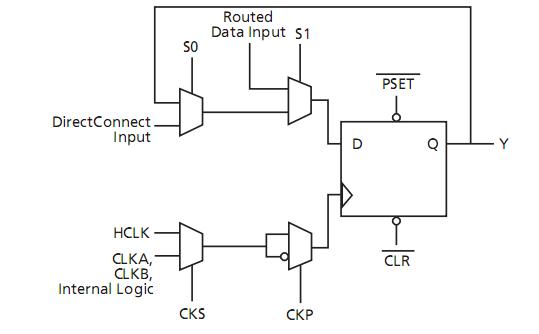

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EX256-TQG100 |
|
IC FPGA ANTIFUSE 12K 100-TQFP |
Data Sheet |
|
|
||||||
|
EX256-TQG100A |
|
IC FPGA ANTIFUSE 12K 100-TQFP |
Data Sheet |
|
|
||||||
|
EX256-TQG100I |
|
IC FPGA ANTIFUSE 12K 100-TQFP |
Data Sheet |
|
|
||||||
