Product Summary
The ST72C334J4T6 is an 8-bit mcu with single voltage flash memory. It is based on a common industrystandard 8-bit core, featuring an enhanced instruction set. The ST72C334J4T6 features single-voltage FLASH memory with byte-by-byte In-Situ Programming (ISP) capability. The ST72C334J4T6 can be placed in WAIT, SLOW, ACTIVE-HALT or HALT mode, reducing power consumption when the application is in idle or standby state.
Parametrics
ST72C334J4T6 absolute maximum ratings: (1)VDD - VSS Supply voltage: 6.5 V; (2)VDDA - VSSA Analog reference voltage VDDA > VSS: 6.5 V; (3)|VDD_i - VDD_j||VDD_i- VDDA| Max. variations (power line): 50 mV; (4)|VSS_i - VSS_j||VSS_i - VSSA|Max. variations (ground line): 50 mV; (5)VIN Input voltage: VSS - 0.3 to VDD + 0.3 V; (6)VOUT Output voltage: VSS - 0.3 to VDD + 0.3 V; (7)ESD ESD susceptibility: 2000 V; (8)IVDD_i Total current into VDD_i (source): 150 mA; (9)IVSS_i Total current out of VSS_i (sink): 150 mA.
Features
ST72C334J4T6 features: (1)8K or 16K Program memory(ROM or Single voltage FLASH) with read-out protection; (2)256-bytes EEPROM Data memory; (3)In-Situ Programming (Remote ISP); (4)Enhanced Reset System; (5)Low voltage supply supervisor with 3 programmable levels; (6)Low consumption resonator or RC oscillators and by-pass for external clock source, with safe control capabilities; (7)4 Power saving modes; (8)Standard Interrupt Controller; (9)8-bit data manipulation; (10)63 basic instructions; (11)17 main addressing modes; (12)8 × 8 unsigned multiply instruction; (13)True bit manipulation.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

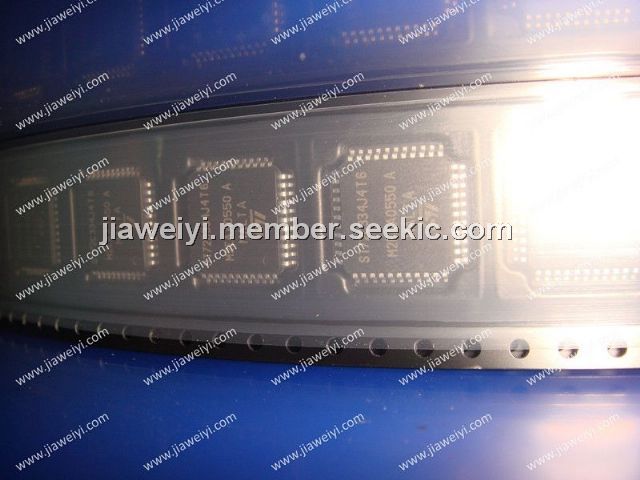

ST72C334J4T6 |
STMicroelectronics |
8-bit Microcontrollers (MCU) Flash 16K SPI/SCI |
Data Sheet |
|
|
|||||||||
