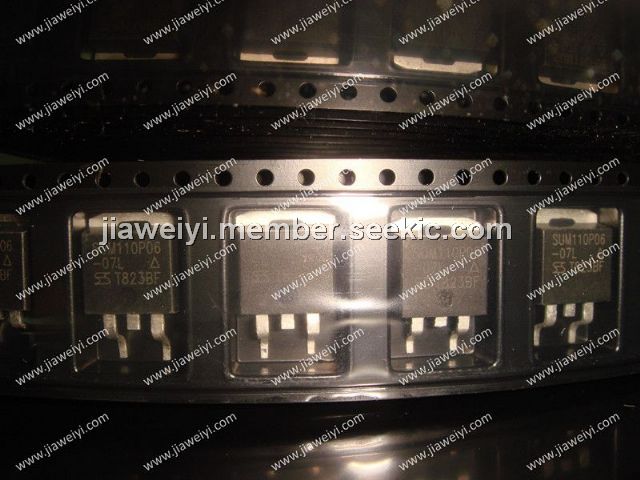

Product Summary

The SUM110P06-07L-E3 is a P-Channel 60V (D-S) 175℃ MOSFET. It is used in Automotive: 12-V Boardnet, High-Side Switches, Motor Drives.

Parametrics

SUM110P06-07L-E3 absolute maximum ratings: (1)Drain-Source Voltage VDS: - 60 V; (2)Gate-Source Voltage VGS: ± 20 V; (3)Continuous Drain Current(TJ = 175 ℃) ID TC = 25 ℃: - 110 A; TC = 125 ℃: - 95 A; (4)Pulsed Drain Current IDM: - 240 A; (5)Avalanche Current IAS: - 75 A; (6)Single Pulse Avalanche Energy EAS: 281 mJ; (7)Power Dissipation PD: 375 W; (8)Operating Junction and Storage Temperature Range TJ, Tstg: - 55 to 175 ℃.

Features

SUM110P06-07L-E3 features: (1)TrenchFET Power MOSFET; (2)Package with Low Thermal Resistance.

Diagrams

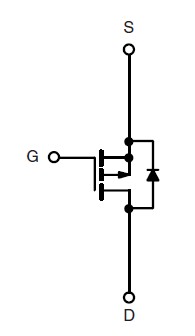

SUM110P06-07L-E3 diagram
