Product Summary

The TL084BCDRE4 is a JFET-input operational amplifier. It is designed to offer a wider selection than any previously developed operational amplifier. It incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The TL084BCDRE4 features high slew rates, low input bias and offset currents, and low offset-voltage temperature coefficient.

Parametrics

TL084BCDRE4 absolute maxing ratings: (1)Supply voltage, VCC+: 18V; (2)Supply voltage VCC-: -18V; (3)Differential input voltage, VID: ±30V; (4)Input voltage, VI: ±15V; (5)Operating free-air temperature range, TA: 0 to 70℃; (6)Operating virtual junction temperature: 150℃; (7)Storage temperature range, Tstg: -65 to 150℃.

Features

TL084BCDRE4 features: (1)Low Power Consumption; (2)Wide Common-Mode and Differential Voltage Ranges; (3)Low Input Bias and Offset Currents; (4)Output Short-Circuit Protection; (5)Low Total Harmonic Distortion: 0.003% Typ; (6)High Input Impedance, JFET-Input Stage; (7)Latch-Up-Free Operation; (8)High Slew Rate: 13 V/μs Typ; (9)Common-Mode Input Voltage Range Includes VCC+.

Diagrams

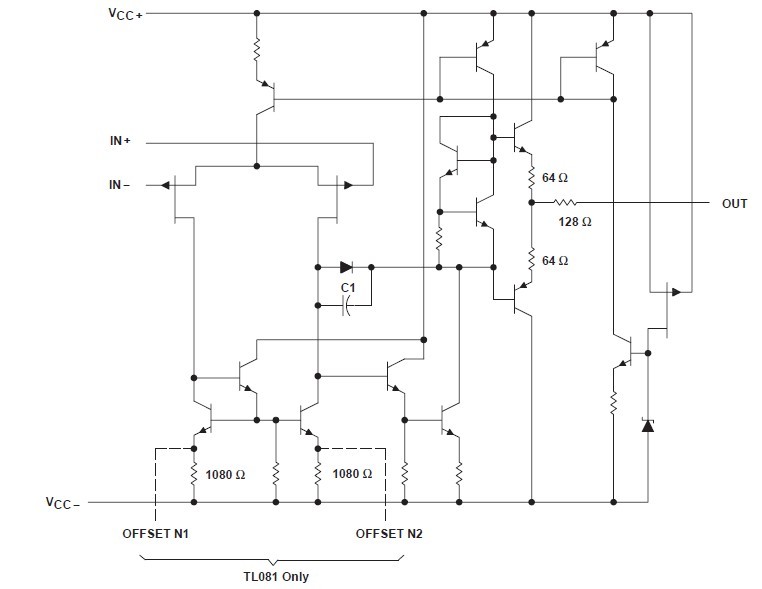

TL084BCDRE4 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TL084BCDRE4
TL084BCDRE4
Texas Instruments
Operational Amplifiers - Op Amps JFET-Input Oper Amplifier
Data Sheet
0-1750: $0.28
1750-2000: $0.24
2000-2500: $0.24
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TL080
TL080
Other

Data Sheet
Negotiable
TL080CP
TL080CP
Texas Instruments
Operational Amplifiers - Op Amps JFET Op Amp
Data Sheet
0-1: $0.95
1-25: $0.76
25-100: $0.70
100-250: $0.61
TL080CPE4
TL080CPE4
Texas Instruments
Operational Amplifiers - Op Amps JFET Input Op Amp
Data Sheet
0-1: $0.86
1-25: $0.69
25-100: $0.63
100-250: $0.57
TL081
TL081
Other

Data Sheet
Negotiable
TL081A
TL081A
Other

Data Sheet
Negotiable
TL081ACD
TL081ACD
STMicroelectronics
Operational Amplifiers - Op Amps Single Gen Purp JFET
Data Sheet
0-1: $0.89
1-10: $0.75
10-100: $0.57
100-250: $0.50
