UPD720101F1-EA8

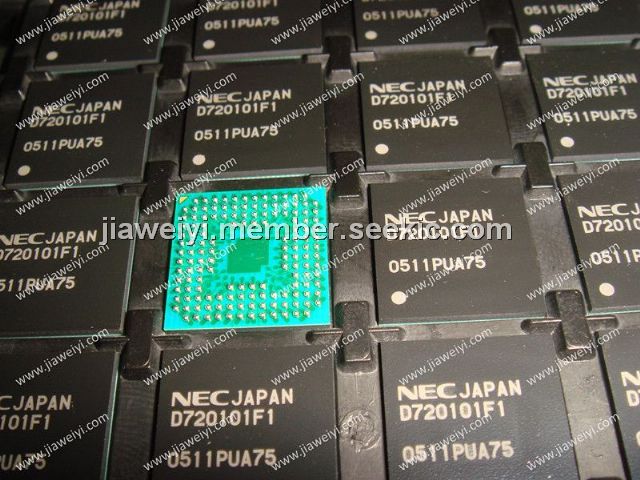

USB 2.0 host controller, 144FBGA, 3.3 V, 33 MHz, UPD720101F1-EA8

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: UPD720101F1-EA8

Brand:: NEC - Nec | Pack: BGA | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-01

From Other Seller

Part Number:UPD720101F1-EA8
US $1.00 - 2.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

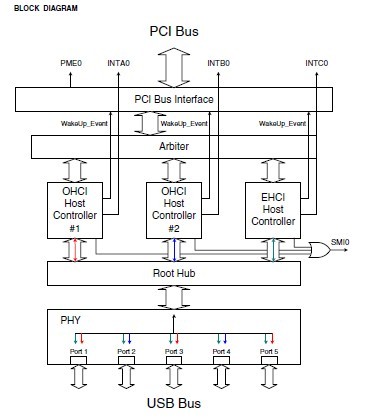

The UPD720101F1-EA8 is an USB 2.0 host controller. It complies with the Universal Serial Bus Specification Revision 2.0 and Open Host Controller Interface Specification for full-/low-speed signaling and Intel’s Enhanced Host Controller Interface Specification for high-speed signaling and works up to 480 Mbps. The UPD720101F1-EA8 is integrated 3 host controller cores with PCI interface and USB2.0 transceivers into a single chip.

Parametrics

UPD720101F1-EA8 absolute maximum ratings: (1)Power supply voltage, VDD: -0.5 to +4.6V; (2)Power supply voltage, AVDD -0.5 to +4.6V; (3)Power supply voltage, VDD_PCI -0.5 to +6.0V; (4)Input voltage, 5 V buffer, VI: -0.5 to +6.6V; (5)Input voltage, 3.3 V buffer, VI: -0.5 to +4.6V; (6)Output voltage, 5 V buffer, VO: -0.5 to +6.6V; (7)Output voltage, 3.3 V buffer, VO: -0.5 to +4.6V; (8)Operating ambient temperature, TA: 0 to +70℃; (9)Storage temperature, Tstg: -65 to +150℃.

Features

UPD720101F1-EA8 features: (1)Compliant with Universal Serial Bus Specification Revision 2.0 (Data rate 1.5/12/480 Mbps); (2)Compliant with Open Host Controller Interface Specification for USB Rev 1.0a; (3)Compliant with Enhanced Host Controller Interface Specification for USB Rev 1.0; (4)Root hub with 5 (max.) downstream facing ports which are shared by OHCI and EHCI host controller cores.; (5)Configurable number of downstream facing ports (2 to 5); (6)32-bit 33 MHz host interface compliant to PCI Specification release 2.2; (7)Supports PCI Mobile Design Guide Revision 1.1; (8)Supports PCI-Bus Power Management Interface Specification release 1.1; (9)PCI bus bus-master access; (10)Operational registers direct-mapped to PCI memory space; (11)3.3V power supply, PCI signal pins have 5 V tolerant circuit.
