Product Summary
The VSC1238XSR is a complete highperformance demultiplexer chip set designed for 9.9-12.5 Gbps applications, including SONET OC-192, SDH STM-64, 10GbE, G.975, G.709 and offering enhanced capabilities specifically designed to address the needs of Ultra Long Haul (ULH) and Long Haul (LH) fiber optic transmission systems. The VSC1238XSR is capable of direct recovery of signals which are subject to various impairments/formats inherent in ULH/LH systems, including poor Optical Signal to Noise Ratio (OSNR) arising from optical amplification, distortion from Chromatic Dispersion, Polarization Mode Dispersion / Differential Group Delay (PMD/DGD), and RZ signaling. The applications of the VSC1238XSR include: SONET OC-192, SDH STM-64 Systems, 10GbE, G.975, G.709 and Proprietary FEC Systems, Long Haul / Ultra Long Haul Transmission Systems, Line Cards, Transponders.
Parametrics
VSC1238XSR specifications: (1)LVDS Compatible Low-speed I/O; (2)-5 to +90℃ Case Temperature Range.
Features
VSC1238XSR features: (1)1:16 Data Demultiplexer; (2)PLL Based Clock Recovery; (3)Highly Sensitive Front-end: 8mVpp Single-ended; (4)Powerful Adaptive Threshold Control Features; (5)Surpasses SONET/SDH Jitter Tolerance Requirements; (6)Reference Multiplier PLL; (7)True Loss of Signal Function; (8)Direct Recovery of NRZ and RZ Signals.

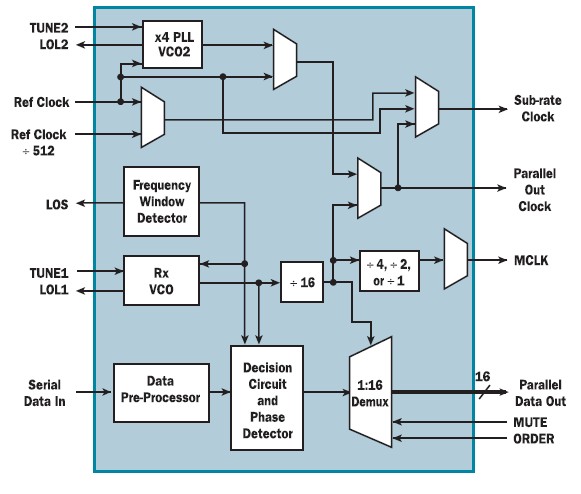

Diagrams
 |
