Product Summary

The XC5210-6TQ144C Field-Programmable Gate Array is engineered to deliver low cost. Building on experiences gained with three previous successful SRAM FPGA families, the XC5210-6TQ144C brings a robust feature set to programmable logic design. The VersaBlock. logic module, the VersaRing I/O interface, and a rich hierarchy of interconnect resources combine to enhance design flexibility and reduce time-to-market. Complete support for the XC5210-6TQ144C is delivered through the familiar Xilinx software environment. The XC5210-6TQ144C is fully supported on popular workstation and PC platforms. Popular design entry methods are fully supported, including ABEL, schematic capture, VHDL, and Verilog HDL synthesis. Designers utilizing logic synthesis can use their existing tools to design with the XC5210-6TQ144C.

Parametrics

XC5210-6TQ144C absolute maximum ratings: (1)VCC Supply voltage relative to GND: -0.5 to +7.0 V; (2)VIN Input voltage with respect to GND: -0.5 to VCC +0.5 V; (3)VTS Voltage applied to 3-state output: -0.5 to VCC +0.5 V; (4)TSTG Storage temperature (ambient): -65 to +150 ℃; (5)TSOL Maximum soldering temperature (10 s @ 1/16 in. = 1.5 mm): +260 ℃; (6)TJ Junction temperature in plastic packages: +125 ℃; (7)Junction temperature in ceramic packages: +150 ℃.

Features

XC5210-6TQ144C features: (1)Low-cost, register/latch rich, SRAM based reprogrammable architecture; (2)System Level Features; (3)Versatile I/O and Packaging; (4)Fully Supported by Xilinx Development System.

Diagrams

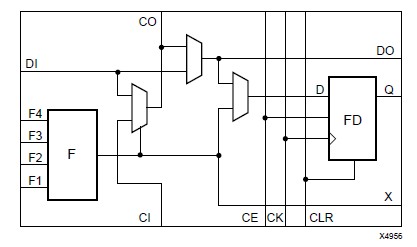

XC5210-6TQ144C diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
XC5210-6TQ144C
XC5210-6TQ144C


IC FPGA 324 CLB'S 144-TQFP

Data Sheet

Negotiable
