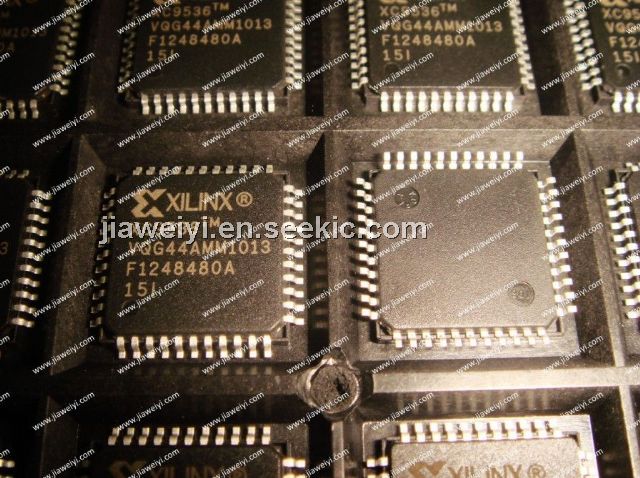

Product Summary
The XC9536-15VQG44I is an in-system programmable CPLD providing advanced in-system programming and test capabilities for general purpose logic integration. The XC9536-15VQG44I is comprised of twelve 36V18 Function Blocks, providing 4,800 usable gates with propagation delays of 5 ns.
Parametrics
XC9536-15VQG44I absolute maximum ratings: (1)Supply voltage relative to GND: -0.5 to 7.0 V; (2)DC input voltage relative to GND: -0.5 to VCC + 0.5 V; (3)Voltage applied to 3-state output with respect to GND: -0.5 to VCC + 0.5 V; (4)Storage temperature: -65 to +150℃; (5)Max soldering temperature (10 s @ 1/16 in = 1.5 mm): +260℃.
Features
XC9536-15VQG44I features:(1)5 ns pin-to-pin logic delays on all pins; (2)fCNT to 100 MHz; (3)36 macrocells with 800 usable gates; (4)Up to 34 user I/O pins; (5)5 V in-system programmable(ISP), Endurance of 10,000 program/erase cycles; Program/erase over full commercial voltage and temperature range; (6)Enhanced pin-locking architecture; (7)Flexible 36V18 Function Block, 90 product terms drive any or all of 18 macrocells within Function Block; Global and product term clocks, output enables, set and reset signals; (8)Extensive IEEE Std 1149.1 boundary-scan (JTAG) support; (9)Programmable power reduction mode in each macrocell; (10)Slew rate control on individual outputs; (11)User programmable ground pin capability; (12)Extended pattern security features for design protection; (13)High-drive 24 mA outputs; (14)3.3 V or 5 V I/O capability; (15)Advanced CMOS 5V FastFLASH technology; (16)Supports parallel programming of more than one XC9500 concurrently; (17)Available in 44-pin PLCC, 44-pin VQFP, and 48-pin CSP packages.

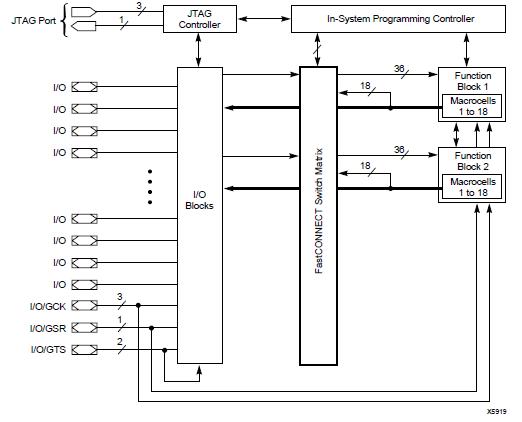

Diagrams
