Product Summary

The XCS20XL-4TQ144I is a 3.3V CPLD targeted for high-perfor-mance, low-voltage applications in leading-edge communi-cations and computing systems. The XCS20XL-4TQ144I is a high-volume production FPGA solution that delivers all the key requirements for ASIC replacement up to 40,000 gates. These requirements of the XCS20XL-4TQ144I include high performance, on-chip RAM, core solutions and prices that, in high volume, approach and in many cases are equivalent to mask programmed ASIC devices.

Parametrics

XCS20XL-4TQ144I maximum ratings: (1)Supply voltage relative to GND: –0.5 to 4.0 V; (2)Input voltage relative to GND(1):–0.5 to 5.5 V; (3)Voltage applied to 3-state output(1): –0.5 to 5.5 V; (4)Storage temperature (ambient)(3): –65 to +150℃; (5)Junction temperature: +150℃.

Features

XCS20XL-4TQ144I features: (1)First ASIC replacement FPGA for high-volume production with on-chip RAM; (2)Density up to 1862 logic cells or 40,000 system gates; (3)Streamlined feature set based on XC4000 architecture; (4)System performance beyond 80 MHz; (5)Broad set of AllianceCORE and LogiCORE predefined solutions available; (6)Unlimited reprogrammability; (7)Low cost.

Diagrams

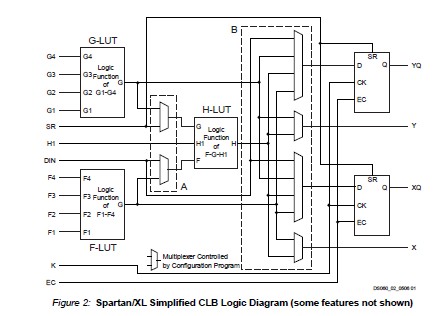

XCS20XL-4TQ144I diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
XCS20XL-4TQ144I
XCS20XL-4TQ144I


IC FPGA 3.3V I-TEMP HP 144TQFP

Data Sheet

Negotiable
