Product Summary

The 3-794627-4 is a 3 mm connector system. It offers wire-to-wire and wire-to-board connections with contacts on a 3 mm centerline and current ratings up to 5 Amps max. per line. Both single-row and dual-row configurations are available. The applications of the 3-794627-4 include: Household appliances, Lighting, Factory automation, Data storage, Gaming, Vending, Garage door openers Security systems.

Parametrics

3-794627-4 specifications: (1)Manufacturer: TE Connectivity / AMP Brand; (2)Part No: 3-794627-4; (3)RoHS: Yes; (4)Type: Power; (5)Termination Method: Solder; (6)Maximum Voltage Rating: 250 VAC; (7)Family: 794627; (8)Pitch: 3 mm; (9)Maximum Current Rating: 5/Contact A; (10)Body Orientation: Right Angle; (11)Number of Contacts: 4; (12)Mounting: Surface Mount.

Features

3-794627-4 features: (1)Wire-to-wire and wire-to-board pin and receptacle connector system; (2)Contacts are on 3 mm centerline spacing and are available in strip form or loose piece; (3)Panel mount or free-hanging versions; (4)Dual beam receptacle contact design for improved reliability; (5)PCB mount pin header assemblies available in both vertical and right angle styles and surface mount or through hole versions; (6)Available in low profile design (<4.7 mm); (7)Discrete wire interconnect available in 2-12 position single row and 2-24 position dual row; (8)Housings available to accommodate 18 AWG wire in select circuits up to 6 position; (9)UL, CSA & VDE approved.

Diagrams

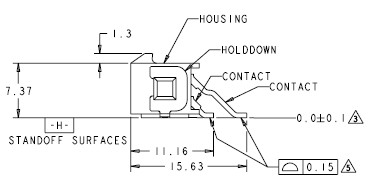

3-794627-4 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
3-794627-4
3-794627-4
TE Connectivity / AMP
Pin & Socket Connectors HDR ASSY 4P TIN R/A SMT
Data Sheet
0-1: $0.97
1-50: $0.91
50-100: $0.80
100-150: $0.75
