Product Summary
The 7MBR50SA-060 is a Power Integrated Module.
Parametrics
7MBR50SA-060 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 600 V; (2)Gate –Emitter Voltage VGES: ±20 V; (3)Collector Current IC: 30 A; IC PULSE: 60 A; (4)Collector Power Dissipation PC: 120 W; (5)Repetitive Peak Reverse Voltage VRRM: 600 V; (6)Operating Junction Temperature Tj: +150 ℃; (7)Storage Temperature TStg: -40 ~ +125 ℃; (8)Isolation Voltage VISO: 2500 V; (9)Mounting Screw Torque: 3.5 Nm.
Features
7MBR50SA-060 features: (1)PT-Technology; (2)Solderable Package; (3)High Short Circuit Withstand-Capability; (4)Small Temperature Dependence of the Turn-Off Switching Loss; (5)Low Losses And Soft Switching.

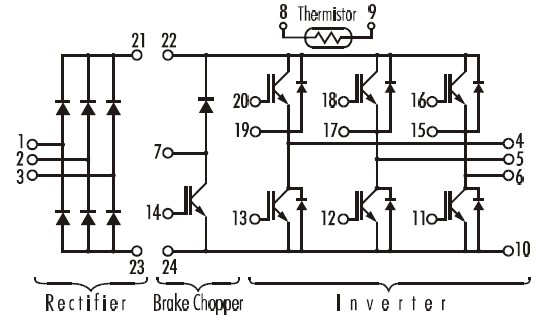

Diagrams
 |
