Product Summary

The A80486DX2SA66 is an embedded processor. It provides high performance to 32-bit, embedded applications. Designed for applications that need a floating-point unit, the A80486DX2SA66 is ideal for embedded designs running DOS, Microsoft Windows, OS/2, or UNIX applications written for the Intel architecture. Projects can be completed quickly by utilizing the wide range of software tools, utilities, assemblers and compilers that are available for desktop computer systems. The A80486DX2SA66 is binary compatible with the Intel386 and earlier Intel processors.

Parametrics

A80486DX2SA66 absolute maximum ratings: (1)Case Temperature under Bias: -65 ℃ to +110 ℃; (2)Storage Temperature: -65 ℃ to +150 ℃; (3)DC Voltage on Any Pin with Respect to Ground: -0.5 V to VCC + 0.5 V; (4)Supply Voltage VCC with Respect to VSS: -0.5 V to +6.5 V.

Features

A80486DX2SA66 features: (1)Integrated Floating-Point Unit; (2)Speed-Multiplying Technology; (3)32-Bit RISC Technology Core; (4)8-Kbyte Write-Through Cache; (5)Four Internal Write Buffers; (6)Burst Bus Cycles; (7)Dynamic Bus Sizing for 8- and 16-bit Data Bus Devices; (8)SL Technology; (9)Data Bus Parity Generation and Checking; (10)Boundary Scan (JTAG); (11)3.3-Volt Processor, 50 MHz, 25 MHz CLK — 208-Lead Shrink Quad Flat Pack (SQFP); (12)5-Volt Processor, 66 MHz, 33 MHz CLK — 168-Pin Pin Grid Array (PGA); (13)Binary Compatible with Large Software Base.

Diagrams

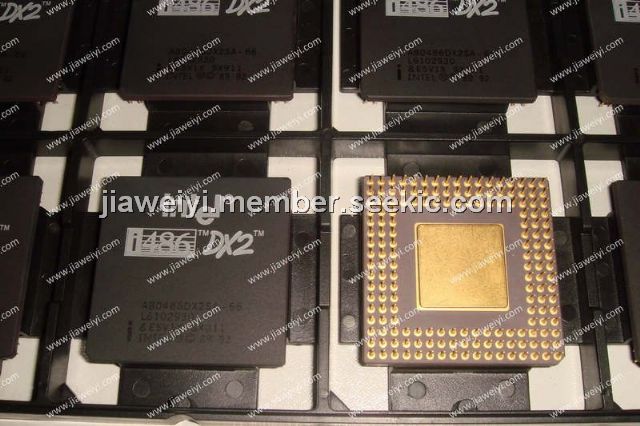

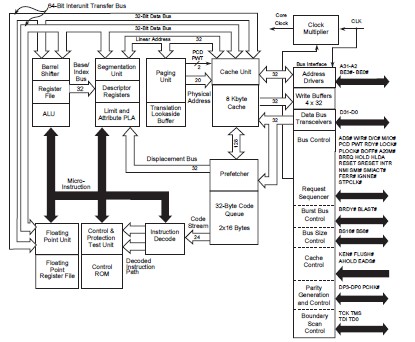

A80486DX2SA66 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
A80486DX2SA66SX911
A80486DX2SA66SX911

IC MPU 32-BIT 5V 66MHZ 168-PGA
Data Sheet
Negotiable
