Product Summary
The ADMC330BSTZ is a low cost single chip DSP microcontroller optimized for stand alone ac motor control applications. The ADMC330BSTZ is based on a 20 MHz fixed-point DSP core (ADSP-2171) and a set of motor control peripherals including seven analog input channels and a 12-bit three-phase PWM generator. The ADMC330BSTZ has two auxiliary 8-bit PWM channels and adds expansion capability through the serial ports and an 8-bit digital I/O port. The ADMC330BSTZ has internal 2K words program RAM, and 1K words data RAM, which can be loaded from an external device via the serial port. There are also 2K words of internal program ROM, which includes a monitor that adds software debugging features through the serial port.
Parametrics
ADMC330BSTZ absolute maximum ratings: (1)Supply Voltage (VDD): –0.3 V to +7.0 V; (2)Digital Input Voltage: –0.3 V to VDD; (3)Analog Input Voltage:–0.3 V to VDD; (4)Analog Reference Input Voltage:–0.3 V to VDD; (5)Digital Output Voltage Swing:–0.3 V to VDD; (6)Analog Reference Output Swing:–0.3 V to VDD; (7)Operating Temperature:–40℃ to +85℃; (8)Lead Temperature (Soldering, 10 sec): +280℃.
Features
ADMC330BSTZ features: (1)Seven Analog Input Channels; (2)Three-Phase 12-Bit PWM Generator; (3)Two 8-Bit Auxiliary PWM Timers; (4)Eight Bits of Digital I/O Port; (5)20 MIPS Fixed Point DSP Core; (6)ADSP-2100 Family Code and Function Compatible with Instruction Set Enhancements; (7)16-Bit Watchdog Timer; (8)Programmable 16-Bit Interval Timer with Prescaler; (9)Two Synchronous Serial Ports; (10)Memory Configuration; (11)2K 3 24-Bit Word Program RAM; (12)1K 3 16-Bit Word Data RAM; (13)2K 3 24-Bit Word Program ROM.

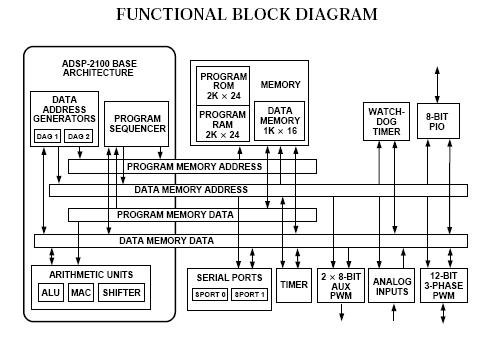

Diagrams
