Product Summary
The K6R4008C1D-JI10 is a 4,194,304-bit high-speed Static Random Access Memory organized as 1,048,576 words by 4 bits. The K6R4008C1D-JI10 uses 4 common input and output lines and has an output enable pin which operates faster than address access time at read cycle. The K6R4008C1D-JI10 is fabricated using SAMSUNG’s advanced CMOS process and designed for high-speed circuit technology. It is particularly well suited for use in high-density high-speed system applications. The K6R4008C1D-JI10 is packaged in a 400 mil 32-pin plastic SOJ.
Parametrics
K6R4008C1D-JI10 absolute maximum ratings: (1)Voltage on Any Pin Relative to VSS:-0.5 to VCC+0.5 V; (2)Voltage on VCC Supply Relative to VSS:-0.5 to 7.0 V; (3)Power Dissipation:1.0 W; (4)Storage Temperature:-65 to 150℃; (5)Operating Temperature:Commercial:0 to 70℃, Industrial:-40 to 85℃.
Features
K6R4008C1D-JI10 features: (1)Fast Access Time 10ns(Max.); (2)Low Power Dissipation:Standby (TTL): 20mA(Max.), (CMOS): 5mA(Max.), Single 5.0V±10% Power Supply; (3)TTL Compatible Inputs and Outputs; (4)Fully Static Operation: No Clock or Refresh required ; (5)Three State Outputs; (6)Center Power/Ground Pin Configuration ; (7)Standard Pin Configuration: 32-SOJ-400; (8)Operating in Commercial and Industrial Temperature range.

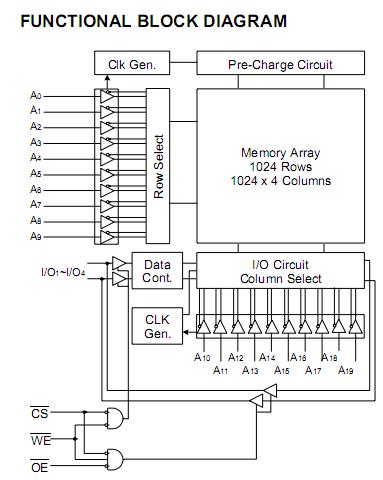

Diagrams
 |
