Product Summary

The ADUM1201BRZ is a dual-channel digital isolator based on Analog Device’iCoupler technology. Combining high speed CMOS and monolithic transformer technology, the ADUM1201BRZ provides outstanding performance characteristics superior to alternatives such as optocoupler device. By avoiding the use of LEDs and photodiodes, iCoupler device removes the design difficulties commonly associated with optocouplers. The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance characteristics. The applications of the ADUM1201BRZ include Size-critical multichannel isolation, SPI interface/data converter isolation, RS-232/RS-422/RS-485 transceiver isolation and Digital field bus isolation.

Parametrics

ADUM1201BRZ absolute maximum ratings: (1)Storage Temperature, TST: -55 to 150℃; (2)Ambient Operating Temperature, TA: -40 to 105℃; (3)Supply Voltages1, VDD1, VDD2: -0.5 to 7.0V; (4)Input Voltage,VIA, VIB: -0.5 to VDDI + 0.5V; (5)Output Voltage, VOA, VOB: -0.5 to VDDO + 0.5V; (6)Average Output Current, per Pin, IO: -35 to 35mA; (7)Common-Mode Transients: -100 to +100 kV/μs.

Features

ADUM1201BRZ features: (1)Narrow body SOIC 8-lead package; (2)Low power operation; (3)Bidirectional communication; (4)3 V/5 V level translation; (5)High temperature operation: 105℃; (6)High data rate: dc to 25 Mbps (NRZ); (7)Precise timing characteristics: 3 ns maximum pulse-width distortion; 3 ns maximum channel-to-channel matching; (8)High common-mode transient immunity: > 25 kV/μs; (9)Safety and regulatory approvals.

Diagrams

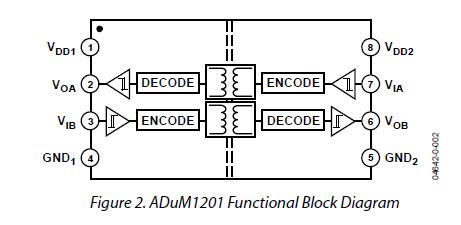

ADUM1201BRZ diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADUM1201BRZ
ADUM1201BRZ

IC DIGITAL ISOLATOR 2CH 8-SOIC
Data Sheet
0-98: $2.14
ADUM1201BRZ-RL7
ADUM1201BRZ-RL7

IC ISOLATOR DIGITAL DUAL 8-SOIC
Data Sheet
0-1: $2.74
1-10: $2.45
10-25: $2.20
25-100: $2.01
100-250: $1.82
250-500: $1.63
