Product Summary
The BCM56502B2KEBG is the fifth generation of the highly-integrated and cost- effective StrataSwitch and StrataXGS product line and is a single-chip solution with 24-GbE ports and two 10-GbE/HiGig+ uplink ports. The BCM56502B2KEBG incorporates 24-GbE ports that can operate 10/100/1000 Mbps. The uplink ports can operate in two modes: 10-GbE switching mode and HiGig+ uplink mode. The integrated 10-GbE switching ports are CX-4 compliant XAUI interfaces. The BCM56502B2KEBG HiGig+ uplink interface is used to connect to other StrataXGS devices in a larger stacking system or to the BCM5675/BCM5676 Switch Fabric via a backplane in a multi-slot redundant chassis system.
Features
BCM56502B2KEBG features: (1)24 10/100/1000 Mbps Ethernet ports supporting both copper and fiber connections; (2)Fifth generation of StrataSwitch and StrataXGS? product line; (3)Two 12-Gbps or 10-Gbps HiGig+TM port uplink interfaces; (4)Two 10-GbE switching ports, CX4 support; (5)Line-rate switching for all packet sizes and conditions; (6)On-chip data packet memory and table memory; (7)IPv6 routing and tunneling; (8)Advanced Fast Filter Processor (FFP) ContentAwareTM classification; (9)Advanced security features in hardware; (10)Port-trunking and mirroring supported across stack; (11)Advanced packet flow control: Head-of-line blocking prevention; Back pressure support; (12)Eight QoS queues per port with hierarchical minimum/maximum shaping per Class of Service (CoS) per queue per port; (13)Standard compliant 802.1ad provider bridging.

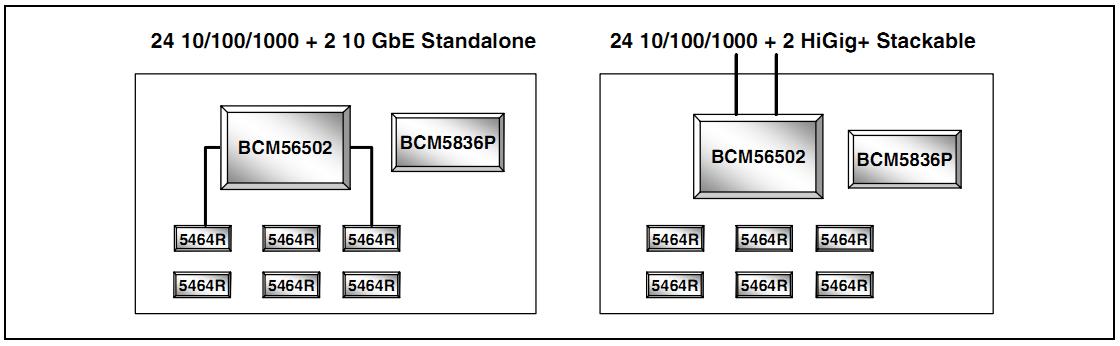

Diagrams
 |
