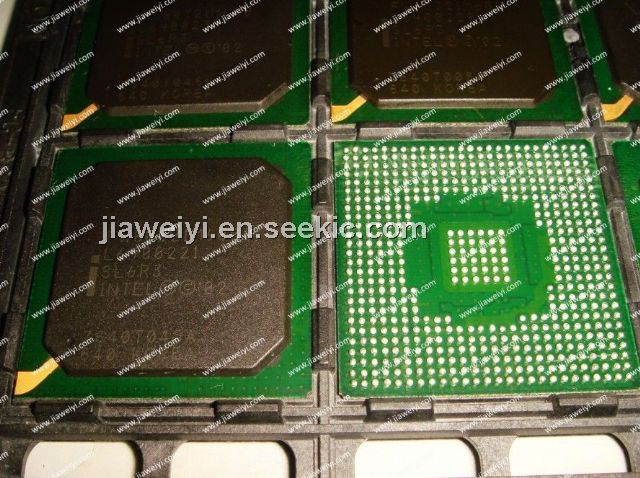

Product Summary

The FW80321M600 SL6R3 is an I/O Processor. The FW80321M600 SL6R3 introduces a powerful combination of technical advancements. The 133 MHz PCI-X interface achieves up to 1 Gbyte per second throughput, a two-fold increase over 66 MHz PCI. The internal bus operates at 200 MHz and offers internal bandwidth of up to 1.6 Gbytes/second. The FW80321M600 SL6R3 also features a 200 MHz DDR SDRAM controller with ECC that supports up to 1Gbyte of 64-bit DDR SDRAM, two times that of the previous generation. It contains a 100 MHz, 32-bit local bus that is excellent for embedded applications requiring a connection to non-PCI peripheral components such as ASICs, flash memory, or DSPs.

Parametrics

FW80321M600 SL6R3 absolute maximum ratings: (1)400, 600 MHz Intel XScale Core; (2)Integrated, System-On-A-Chip Design; (3)133 MHz PCI-X Interface; (4)200 MHz DDR SDRAM Bus; (5)Up to 1GB memory support; (6)1.6 GB/s Internal Bus; (7)32-bit Local Bus; (8)8 GPIOs; (9)4 SDRAM Output Clocks; (10)2 Programmable Timers; (11)AAU/XOR.

Features

FW80321M600 SL6R3 features: (1)High-performance with low power; (2)Smaller packaging, board space cost savings; (3)Industry Standard I/O Bus; (4)Higher memory performance; (5)Supports large memory subsystems; (6)Overall performance boost; (7)Excellent for embedded applications requiring non-PCI-X peripherals such as ASICs, DSPs, or flash; (8)Reduces chip count; (9)Saves board space; (10)Simplifies design; (11)Integrated data protection for RAID; cuts board cost/space.

Diagrams

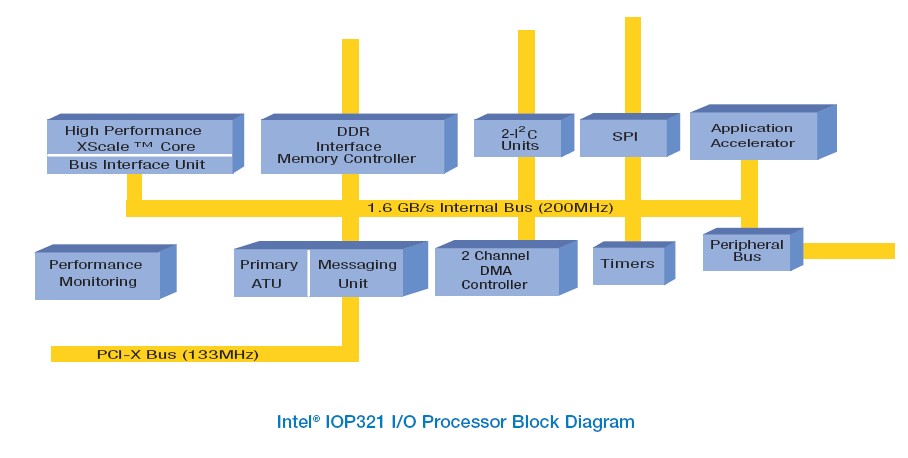

FW80321M600 SL6R3 block diagram
