HD6417750RF200V

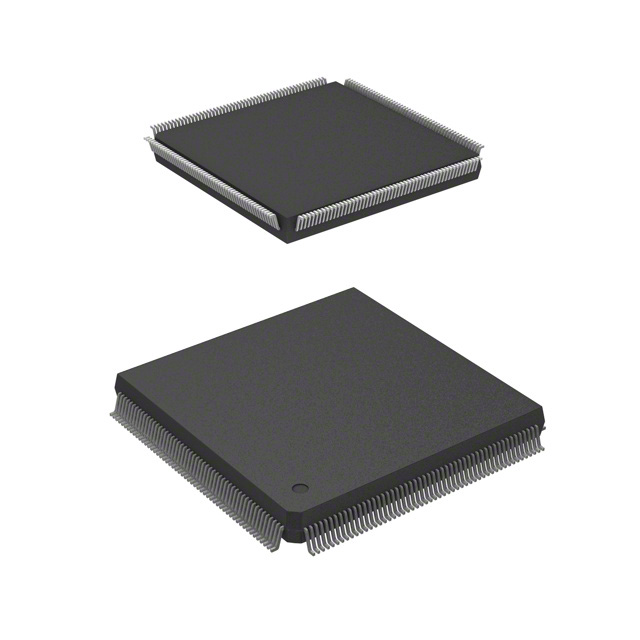

32-bit RISC microprocessor, 3V, 208-QFP, HD6417750RF200V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: HD6417750RF200V

Brand:: Renesas Technology Corp - Renesas | Pack: QFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-27

From Other Seller

Part Number:HD6417750RF200V
US $1.00 - 2.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

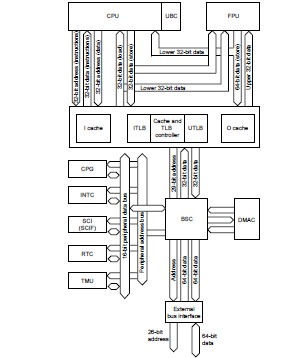

The HD6417750RF200V is a 32-bit RISC microprocessor, featuring object code upward-compatibility with SH-1, SH-2, and SH-3 microcomputers. The HD6417750RF200V includes an instruction cache, an operand cache with a choice of copy-back or write-through mode, and an MMU (memory management unit) with a 64-entry fully-associative unified TLB (translation lookaside buffer). The HD6417750RF200V has a 16-kbyte instruction cache and a 32-kbyte data cache. Its 16-bit fixed-length instruction set enables program code size to be reduced by almost 50% compared with 32-bit instructions.

Parametrics

HD6417750RF200V absolute maximum ratings: (1)I/O, PLL, RTC, CPG power supply voltage VDDQ: –0.3 to 4.2 V; (2)Internal power supply voltage VDD: –0.3 to 2.5 V; (3)Input voltage Vin: –0.3 to VDDQ + 0.3 V; (4)Operating temperature Topr: –20 to 75 ℃; (5)Storage temperature Tstg: –55 to 125 ℃.

Features

HD6417750RF200V features: (1)Superscalar architecture: Parallel execution of two instructions; (2)Packages: 256-pin BGA, 208-pin QFP, 264-pin CSP; (3)External buses: Separate 26-bit address and 64-bit data buses, External bus frequency of 1/2, 1/3, 1/4, 1/6, or 1/8 times internal bus frequency; (4)Original Hitachi SH architecture; (5)32-bit internal data bus; (6)Superscalar architecture (providing simultaneous execution of two instructions) including FPU; (7)Instruction execution time: Maximum 2 instructions/cycle; (8)Virtual address space: 4 Gbytes (448-Mbyte external memory space); (9)Space identifier ASIDs: 8 bits, 256 virtual address spaces; (10)On-chip multiplier; (11)Five-stage pipeline.
