JS28F160C3BD-70

Book Block Flash Memory, 3V, 16MBIT, 48-TSOP, 7 uA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: JS28F160C3BD-70

Brand:: Intel Corporation - Intel | Pack: TSOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-27

From Other Seller

Part Number:JS28F160C3BD-70
US $1.00 - 2.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

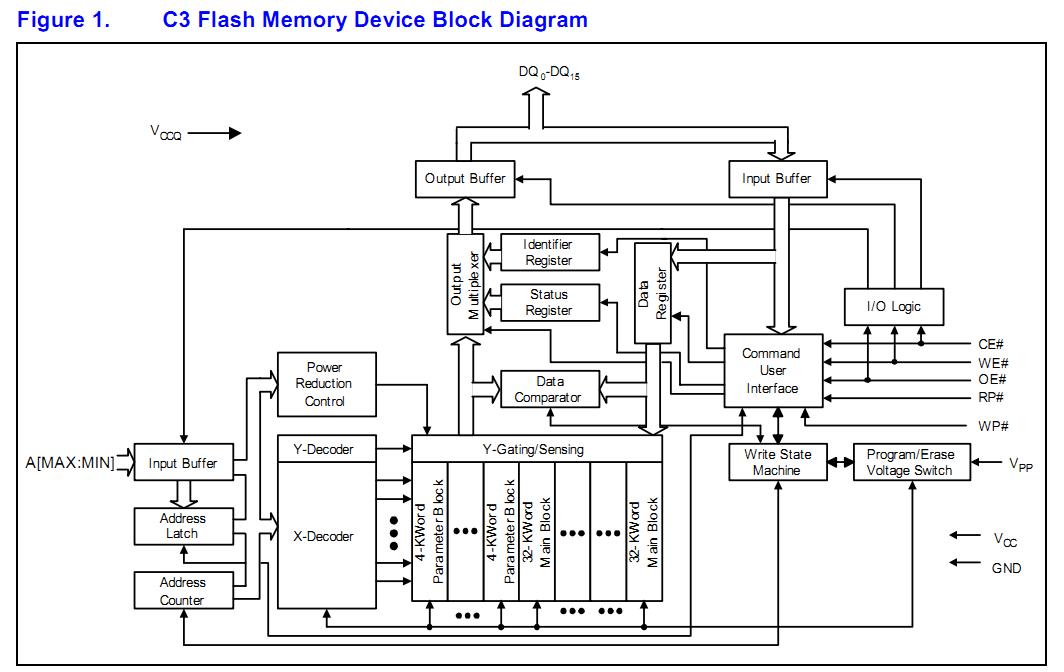

The JS28F160C3BD-70 is an Advanced+ Book Block Flash Memory (C3) device. The JS28F160C3BD-70 incorporates low-voltage capability (3 V read, program, and erase) with high-speed, low-power operation. Flexible block locking allows any block to be independently locked or unlocked.

Parametrics

JS28F160C3BD-70 absolute maximum ratings: (1)Extended Operating Temperature During Read: –40 to +85℃; (2)During Block Erase and Program: –40 to +85℃; (3)Temperature under Bias: –40 to +85℃; (4)Storage Temperature: –65 to +125℃; (5)Voltage On Any Pin (except VCC and VPP) with Respect to GND: –0.5 V to +3.7 V; (6)VPP Voltage (for Block Erase and Program) with Respect to GND: –0.5 V to +13.5 V; (7)VCC and VCCQ Supply Voltage with Respect to GND: –0.2 V to +3.6 V; (8)Output Short Circuit Current: 100 mA.

Features

JS28F160C3BD-70 features: (1)Flexible SmartVoltage Technology: 2.7 V– 3.6V read/program/erase; 12 V for fast production programming; (2)1.65 V to 2.5 V or 2.7 V to 3.6 V I/O Option: Reduces overall system power; (3)High Performance: 2.7 V– 3.6 V: 70 ns max access time; (4)Optimized Architecture for Code Plus Data Storage: Eight 4 Kword blocks, top or bottom parameter boot; Up to 127 x 32 Kword blocks; Fast program suspend capability; Fast erase suspend capability; (5)Flexible Block Locking: Lock/unlock any block; Full protection on power-up; Write Protect pin for hardware ; (6)block protection; (7)Low Power Consumption: 9 mA typical read; 7 uA typical standby with Automatic Power Savings feature; (8)Extended Temperature Operation: -40 to +85℃.
