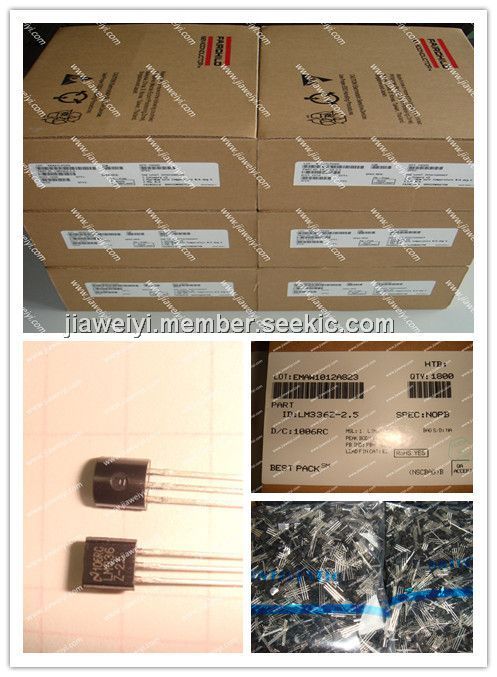

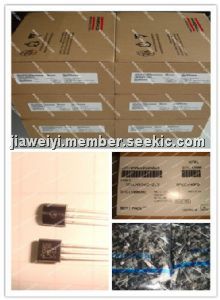

LM336 2.5V

precision 2.5V regulator diode, TO92, 400μA to 10mA, 0.2Ω, Low temperature coefficient

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.21~0.24 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.21~0.24

PartNumber:: LM336 2.5V

Brand:: National Semiconductor - NS | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-16

From Other Seller

Part Number:LM336 2.5V
US $0.21 - 0.24
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

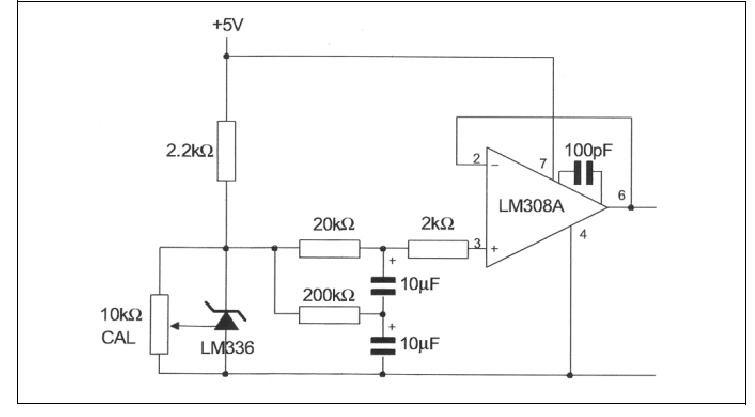

The LM336 2.5V is a precision 2.5V regulator diode. The device operates like 2.5V Zener diodes with a low temperature coefficient and a dynamic impedance of 0.2Ω. A third pin enables adjusting the reference voltage and the temperature coefficient. The LM336 2.5V is useful as a precision 2.5V low voltage reference for digital voltmeters, power supplies or op amp circuitry. The 2.5V make the LM336 2.5V convenient to obtain a stable reference from 5V logic supplies.

Parametrics

LM336 2.5V absolute maximum ratings: (1)Current: Reverse: 15mA, Forward: 10mA; (2)Operating free-air temperature range:0 to +70℃; (3)Storage temperature range:-65 to +150℃.

Features

LM336 2.5V features: (1)Low temperature coefficient; (2)Wide operating current of 400 μA to 10 mA; (3)0.2Ω dynamic impedance; (4)±1% initial tolerance available; (5)Guaranteed temperature stability; (6)Easily trimmed for minimum temperature drift; (7)Fast turn-on.
